Why Choose the EMAS EBM05PU30 5-Pole 10 A Hood with Female Insert?

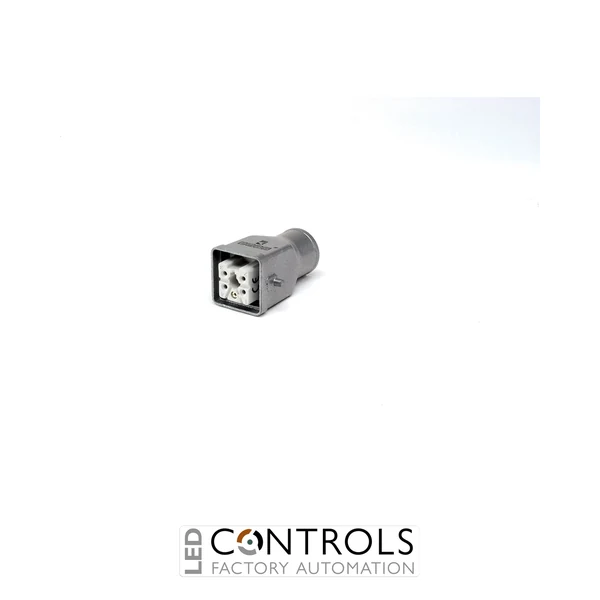

The EMAS EBM05PU30 is a robust 5-pole industrial multipole connector hood with female insert designed for reliable electrical connections in industrial machinery, automation equipment and control systems. As part of the EMAS EBM Series, it combines a powder-coated metal hood with a female socket insert to provide a durable extension-type connector for demanding industrial installations.
With a rated operating current of 10 A, an insulation voltage of 690 V and an impulse withstand voltage of 6 kV, the EBM05PU30 provides dependable electrical performance for industrial power and control connections. Its top-entry configuration allows straightforward vertical cable routing, while the five-pole arrangement provides a practical connection interface for compatible machinery and automation circuits.
The EBM05PU30 features a durable metal body and provides IP65 protection in the closed position when correctly assembled with compatible components and an appropriate cable gland. With an operating temperature range of -40 °C to +125 °C and compliance with TS EN 61984, it is engineered for reliable service across demanding industrial environments.
Key Advantages
- Complete 5-pole hood with female insert for industrial multipole connections.
- 10 A operating current suitable for industrial power and control circuits.
- 690 V insulation voltage for dependable electrical isolation.
- 6 kV impulse withstand voltage for industrial electrical applications.
- Top cable entry supports convenient vertical cable routing.
- Durable powder-coated metal housing for demanding environments.
- IP65 protection in the closed position when correctly assembled.
Key Features
- EMAS EBM Series industrial multipole connector.
- 5-pole female insert integrated within the hood assembly.
- 10 A rated operating current.
- 690 V insulation voltage (Ui).
- 6 kV impulse withstand voltage (Uimp).
- Top-entry cable configuration.
- PG11 cable entry for the 5-pole EBM connector format.
- IP65 protection in the closed position.
- Minimum mechanical life of 500 operations.
- Wide -40 °C to +125 °C operating temperature range.
Reliable Multipole Connectivity for Industrial Equipment
Heavy-duty multipole connectors such as the EMAS EBM05PU30 allow several electrical circuits to be connected and disconnected through a single robust industrial interface. Combining the metal hood and female insert into an extension-type socket assembly helps simplify machinery installation, commissioning and maintenance while providing a secure connection for compatible equipment.
The top-entry configuration is particularly useful where cables approach the connector vertically. When correctly assembled with a suitable cable gland and coupled with a compatible EMAS EBM male connector, the EBM05PU30 provides IP65 protection and dependable connectivity for machine building, industrial automation and production equipment.
Typical Applications
- Industrial machinery and automation systems.
- Electrical control panels and equipment.
- Machine-to-machine electrical connections.
- Production and manufacturing machinery.
- Material handling and conveyor systems.
- OEM machinery and machine building.
