Why Choose the EMAS EBM05PU36 5-Pole 10 A Hood with Female Insert?

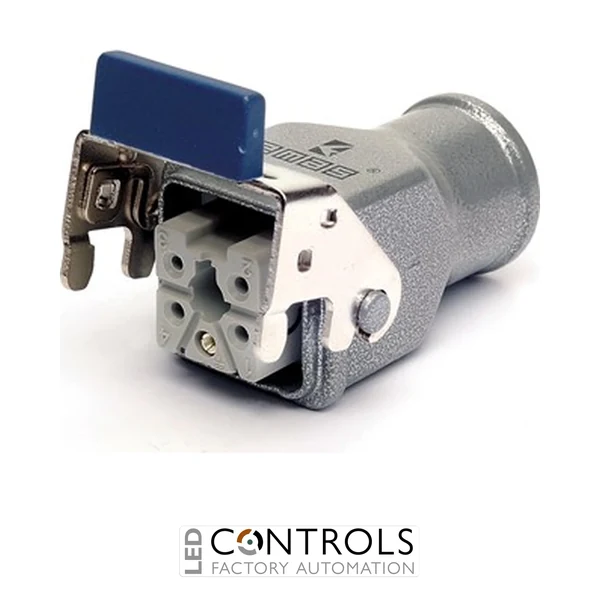

The EMAS EBM05PU36 is a robust 5-pole 10 A extension-type socket with female insert designed for secure multipole electrical connections in industrial machinery, automation equipment and control systems. Part of the EMAS EBM Series, it combines a powder-coated metal housing, female connector insert and metal locking handle in a durable portable connector assembly.
Designed with a top cable entry, the EBM05PU36 provides straightforward cable routing and convenient connection to compatible EBM Series components. Its single metal locking handle maintains positive engagement between mating connectors, while the metal body provides mechanical protection for the insert and terminations in demanding industrial environments.
With a rated operating current of 10 A, insulation voltage of 690 V and impulse withstand voltage of 6 kV, the EBM05PU36 is engineered for dependable industrial service. It provides IP65 protection in the closed position and operates across a wide temperature range of -40 to +125 °C.
Key Advantages
- Complete 5-pole 10 A extension-type socket with female insert.
- Durable powder-coated metal housing for industrial applications.
- Top cable entry supports convenient cable routing and installation.
- Single metal locking handle provides secure connector retention.
- IP65 protection in the closed position helps resist dust and water ingress.
- High 690 V insulation voltage and 6 kV impulse withstand voltage.
Key Features
- EMAS EBM Series industrial multipole connector.
- 5-pole female insert.
- 10 A operating current.
- Extension-type socket configuration.
- Top-entry metal housing.
- PG11 connector format.
- One metal locking handle.
- 690 V insulation voltage (Ui).
- 6 kV impulse withstand voltage (Uimp).
- IP65 protection in the closed position.
- Minimum mechanical life of 500 operations.
- Operating temperature range from -40 to +125 °C.
Reliable Multipole Connections for Industrial Equipment
Industrial multipole connectors combine several electrical contacts within one connector assembly, helping simplify machine wiring and allowing equipment sections to be connected or disconnected efficiently during installation, servicing and maintenance. A durable housing and positive locking system help protect the contacts and maintain connection integrity in industrial environments.
The EMAS EBM05PU36 combines a 5-pole female insert with a powder-coated metal extension housing, top cable entry and metal locking handle. Its high insulation performance, IP65 closed-position protection and broad operating temperature range make it suitable for dependable connection duties across machinery and industrial automation systems.
Typical Applications
- Industrial machinery and machine tools.
- Factory automation and production equipment.
- Conveyor and material handling systems.
- Electrical control and distribution equipment.
- Motor, actuator and machine peripheral connections.
- OEM machinery requiring detachable multipole connections.
