Why Choose the EMAS EBM06FM42 Housing with Male Insert?

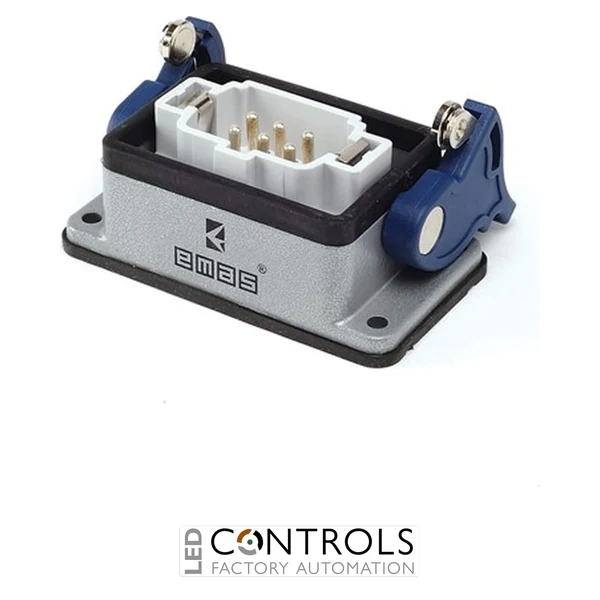

The EMAS EBM06FM42 is a robust 6-pole 16 A machine-type multipole connector with male insert, designed for dependable detachable electrical connections in industrial machinery, automation and control equipment. It combines a metal housing, male contacts and secure locking within a practical machine-mounted connector assembly.
The EBM06FM42 features a bottom-entry configuration and two locking handles, providing secure mechanical engagement with a compatible mating connector. Its metal body offers durable protection for the internal connection system, while captive-screw construction helps make installation and servicing straightforward.
With a 16 A operating current, 690 V insulation voltage and 6 kV impulse withstand voltage, the EBM06FM42 is engineered for demanding industrial applications. It provides IP65 protection, operates from -40 °C to +125 °C and is manufactured in accordance with TS EN 61984.
Key Advantages
- Complete 6-contact machine-type connector with male insert.
- 16 A operating current for compatible industrial circuits.
- Bottom-entry configuration for machine and panel installations.
- Two locking handles provide secure connector engagement.
- Durable metal body for industrial environments.
- IP65 protection for correctly assembled connector installations.
- Wide -40 °C to +125 °C operating temperature range.
Key Features
- EMAS EBM Series multipole industrial connector.
- 6 contacts.
- Male insert configuration.
- 16 A operating current.
- 690 V insulation voltage (Ui).
- 6 kV impulse withstand voltage (Uimp).
- Machine-type connector construction.
- Bottom cable entry.
- Two-handle locking arrangement.
- Metal housing.
- IP65 protection class.
- AC-15 utilisation category.
Secure Machine-Mounted Multipole Connectivity
Machine-type multipole connectors provide a convenient fixed connection point for equipment that must be electrically connected and disconnected during installation, maintenance or replacement. Combining multiple contacts in one connector reduces individual wiring operations and creates an organised interface between machinery and external cables or control systems.
The EMAS EBM06FM42 combines six male contacts with a bottom-entry metal machine housing and two-handle locking arrangement. Its high insulation rating, IP65 protection and broad operating temperature range make it suitable for robust industrial connector assemblies where dependable mechanical and electrical performance is required.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation systems.
- Machine-mounted electrical interfaces.
- Electrical control and power connections.
- Conveyor and material handling equipment.
- OEM machinery requiring detachable multipole connections.
