Why Choose the EMAS EBM06FU30 6 Pole 16 A Top Entry Hood with Male Insert?

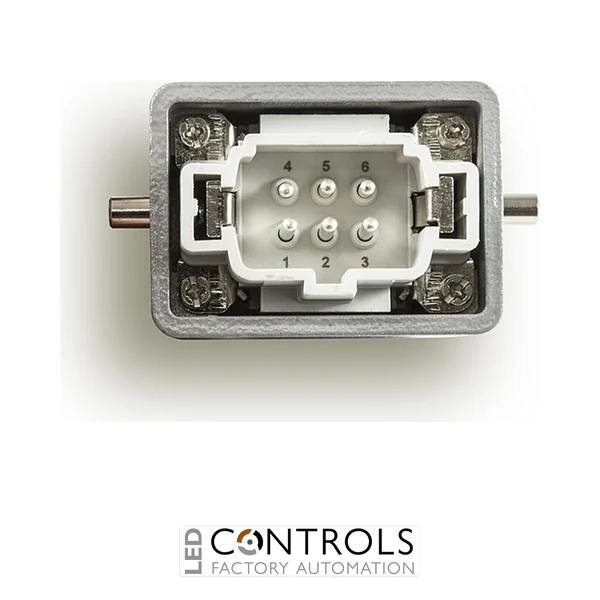

The EMAS EBM06FU30 is a robust 6-pole extension-type industrial plug with male insert designed for reliable detachable electrical connections in industrial machinery, automation equipment and control systems. Part of the EMAS EBM Series, it combines a 6-pole male insert with a durable metal hood in a practical top-entry configuration.
With an operating current of 16 A, insulation voltage of 690 V and impulse withstand voltage of 6 kV, the EBM06FU30 provides dependable electrical performance for demanding industrial installations. The connector offers IP65 protection and uses a powder-coated metal housing for durability in industrial environments.
The EBM06FU30 features a top-entry cable arrangement and belongs to the 6-pole, 16 A EBM connector family associated with a PG16 cable entry. Designed to TS EN 61984, it provides machine builders, panel builders and automation engineers with a convenient multipole connection for equipment that needs to be installed, disconnected or serviced efficiently.
Key Advantages
- Complete 6-pole extension-type plug with male insert.
- 16 A operating current for industrial electrical connection duties.
- Top-entry configuration supports convenient straight cable routing.
- IP65 protection rating for demanding industrial environments.
- Durable powder-coated metal housing.
- 690 V insulation voltage and 6 kV impulse withstand voltage.
Key Features
- EMAS EBM Series industrial multipole connector.
- 6-pole male insert configuration.
- 16 A operating current.
- Extension-type plug design.
- Top-entry cable arrangement.
- Associated PG16 cable entry for the 6-pole 16 A connector family.
- IP65 protection rating.
- 690 V insulation voltage (Ui).
- Minimum 500-cycle mechanical life.
- Designed in accordance with TS EN 61984.
Industrial multipole connectors such as the EMAS EBM06FU30 allow several electrical circuits to be connected and disconnected through one connector assembly. This simplifies machine installation, commissioning and servicing by reducing the need to individually disconnect multiple conductors when equipment or modular machine sections need to be removed.
The EBM06FU30 combines a 6-pole male insert with a durable metal extension-type hood and top cable entry. Its 16 A operating current, IP65 protection, high insulation voltage and broad operating temperature range make it well suited to industrial machinery and automation systems requiring dependable removable electrical connections.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation systems.
- Electrical control panels and cabinets.
- Machine building and OEM equipment.
- Modular machinery requiring detachable electrical connections.
- Industrial control and instrumentation wiring.
- Equipment installations requiring top-entry multipole connections.
