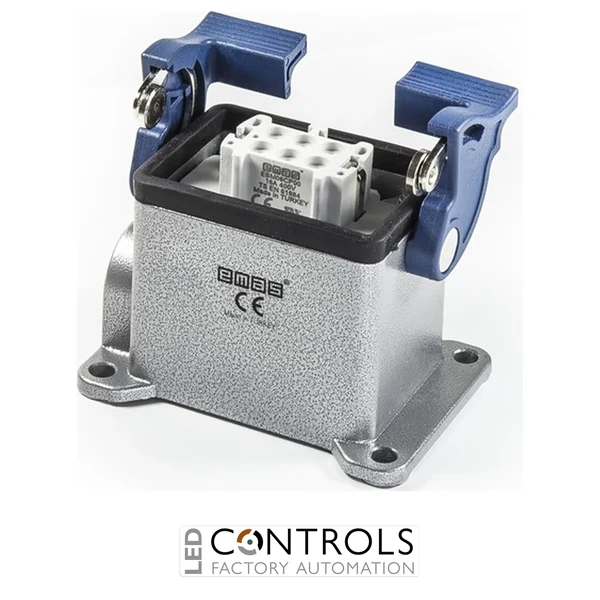

Why Choose the EMAS EBM06PD12 6-Pole 16 A Wall Type Socket?
The EMAS EBM06PD12 is a robust 6-pole 16 A wall type multipole socket designed for reliable electrical connections in industrial machinery, automation equipment and control systems. Part of the EMAS EBM Series, it combines a durable metal housing with a female insert and two-handle locking arrangement for secure connection in demanding industrial environments.
Designed for side cable entry and surface mounting, the EBM06PD12 provides a practical fixed connection point on machinery, control panels and industrial equipment. Its powder-coated metal housing protects the connector components, while the two locking handles provide positive mechanical retention of the compatible mating plug.
With a rated operating current of 16 A, insulation voltage of 690 V and impulse withstand voltage of 6 kV, the EBM06PD12 is engineered for dependable industrial service. The connector provides IP65 protection in the closed position and operates across a wide temperature range of -40 to +125 °C.
Key Advantages
- Complete 6-pole 16 A wall type socket with female insert.
- Durable powder-coated metal housing for demanding industrial applications.
- Side cable entry supports convenient surface-mounted wiring.
- Two-handle locking system provides secure mating connector retention.
- IP65 protection in the closed position helps protect against dust and water ingress.
- High 690 V insulation voltage and 6 kV impulse withstand voltage.
Key Features
- EMAS EBM Series industrial multipole connector.
- 6-pole female socket configuration.
- 16 A operating current.
- Wall type / surface-mount socket.
- Side cable entry.
- PG16 connector format.
- Two locking handles.
- Metal housing construction.
- 690 V insulation voltage (Ui).
- 6 kV impulse withstand voltage (Uimp).
- IP65 protection in the closed position.
- Minimum mechanical life of 500 operations.
- Minimum electrical life of 100 operations.
- Operating temperature range from -40 to +125 °C.
Reliable Multipole Connections for Industrial Machinery
Industrial multipole sockets provide a convenient way to connect several electrical circuits through a single compact interface, simplifying machine installation, maintenance and component replacement. A fixed wall-mounted housing provides a stable connection point, while positive mechanical locking helps prevent accidental separation in applications exposed to vibration or repeated servicing.
The EMAS EBM06PD12 combines a 6-pole female insert with a robust metal wall-type housing, side cable entry and twin locking handles. Its high insulation performance, IP65 closed-position protection and broad operating temperature range make it a dependable connection solution for machinery, control panels and industrial automation systems.
Typical Applications
- Industrial machinery and machine tools.
- Factory automation and production equipment.
- Electrical control panels and cabinets.
- Conveyor and material handling systems.
- Motor, actuator and machine peripheral connections.
- OEM machinery requiring detachable 6-pole electrical connections.
