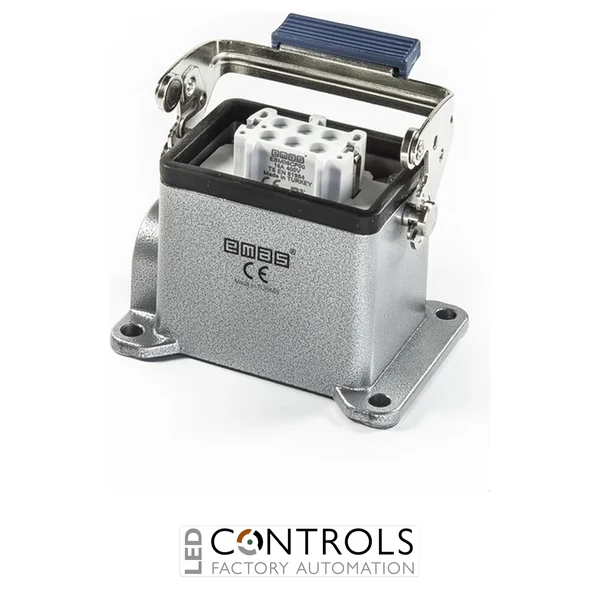

Why Choose the EMAS EBM06PD16 6-Pole 16 A Wall Type Socket?
The EMAS EBM06PD16 is a robust 6-pole 16 A wall type multipole socket designed for reliable electrical connections in industrial machinery, automation equipment and control systems. Part of the EMAS EBM Series, it combines a durable metal housing, female connector arrangement and a single metal locking handle to provide a secure fixed connection point in demanding industrial installations.
Designed with a side cable entry, the EBM06PD16 is well suited to surface-mounted applications on machine frames, control panels and electrical enclosures. Its powder-coated metal housing provides mechanical protection for the connector components, while the single metal locking handle provides positive retention of the compatible mating connector.
With a rated operating current of 16 A, insulation voltage of 690 V and impulse withstand voltage of 6 kV, the EBM06PD16 is engineered for dependable industrial service. It provides IP65 protection in the closed position and has a wide operating temperature range of -40 to +125 °C.
Key Advantages
- Complete 6-pole 16 A wall type socket for industrial multipole connections.
- Durable powder-coated metal housing for demanding machinery environments.
- Side cable entry supports practical surface-mounted installation.
- Single metal locking handle provides secure mating connector retention.
- IP65 protection in the closed position helps protect against dust and water ingress.
- High 690 V insulation voltage and 6 kV impulse withstand voltage.
Key Features
- EMAS EBM Series industrial multipole connector.
- 6-pole female wall type socket.
- 16 A operating current.
- Wall / surface-mount configuration.
- Side cable entry.
- Single metal locking handle.
- Metal housing construction.
- 690 V insulation voltage (Ui).
- 6 kV impulse withstand voltage (Uimp).
- IP65 protection in the closed position.
- Minimum mechanical life of 500 operations.
- Minimum electrical life of 100 operations.
- Operating temperature range from -40 to +125 °C.
Reliable Multipole Connections for Industrial Machinery
Industrial multipole sockets allow several electrical circuits to be connected through one compact interface, helping simplify machine wiring, commissioning and maintenance. A fixed wall-mounted housing provides a stable connection point, while positive mechanical locking helps prevent accidental separation in installations exposed to vibration or repeated servicing.
The EMAS EBM06PD16 combines a 6-pole female socket arrangement with a robust metal wall-type housing, side cable entry and single metal locking handle. Its high insulation performance, IP65 closed-position protection and broad operating temperature range make it a dependable connection solution for machinery, control panels and industrial automation systems.
Typical Applications
- Industrial machinery and machine tools.
- Factory automation and production equipment.
- Electrical control panels and cabinets.
- Conveyor and material handling systems.
- Motor, actuator and machine peripheral connections.
- OEM machinery requiring detachable 6-pole electrical connections.
