Why Choose the EMAS EBM10GD14 10-Pole 16 A Surface-Mount Housing?
The EMAS EBM10GD14 is a robust 10-pole surface-mount empty connector housing designed for industrial multipole connection systems. Part of the EMAS EBM Series, it provides a durable fixed mounting interface for machinery, control panels and automation equipment requiring a secure and serviceable electrical connector arrangement.

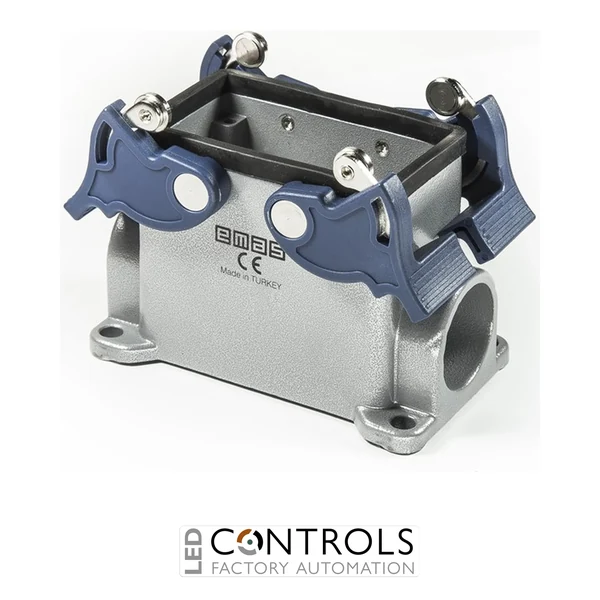

The EBM10GD14 features a metal wall-type housing with side cable entry and four locking handles. Its surface-mount design allows the housing to be installed directly onto machinery or enclosure surfaces, while the multiple locking points provide secure engagement with a compatible EBM Series mating connector.
Designed for the 10-pole 16 A EBM connector format, the EBM10GD14 has a 690 V insulation voltage and is suitable for 50–60 Hz electrical systems. The housing is rated IP50 when open and IP65 when correctly assembled and closed, with IP65 performance dependent on use of an appropriate cable gland.
Key Advantages
- Robust 10-pole surface-mount empty housing for industrial multipole connections.
- Designed for the 16 A EMAS EBM connector format.
- Durable metal housing for machinery and automation environments.
- Side cable entry simplifies routing in fixed surface-mounted installations.
- Four-handle locking arrangement provides secure connector engagement.
- IP65 protection when correctly assembled and closed with an appropriate cable gland.
Key Features
- EMAS EBM Series industrial multipole connector housing.
- 10-pole connector format.
- Designed for 16 A EBM connector assemblies.
- Wall type / surface-mount empty housing.
- Metal body construction.
- Side cable entry.
- Four locking handles.
- 690 V insulation voltage (Ui).
- 50–60 Hz rated frequency.
- IP50 open-state protection.
- IP65 protection when correctly assembled and closed with a suitable cable gland.
- Compatible with corresponding 10-pole EBM Series inserts and mating connectors.
Reliable Surface-Mount Housing for Industrial Multipole Connections
Surface-mounted multipole connector housings provide a fixed interface between machine wiring and detachable connector assemblies. By bringing multiple electrical circuits together within one connector system, they can simplify installation, commissioning and maintenance while reducing the need to disconnect individual conductors when equipment is serviced or replaced.
The EMAS EBM10GD14 combines durable metal construction with a side-entry format and four-point locking arrangement. As an empty housing, it can be paired with compatible 10-pole EBM Series components, allowing machine builders and control-panel engineers to configure a dependable 16 A multipole connection for industrial equipment.
Typical Applications
- Industrial machinery and machine tools.
- Factory automation and production equipment.
- Electrical control panels and cabinets.
- Conveyor and material handling systems.
- Machine-mounted electrical connection points.
- OEM machinery requiring detachable 10-pole multipole connections.
