Why Choose the EMAS EBM10GD27 Surface-Mount Housing?

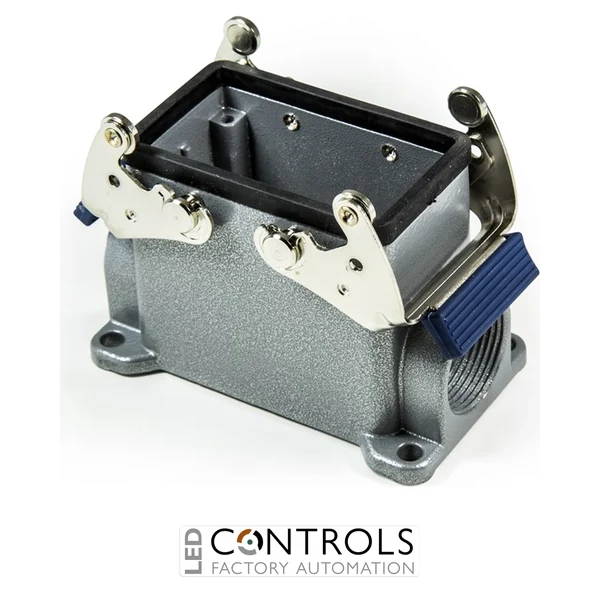

The EMAS EBM10GD27 is a robust 10-pole wall-type multipole connector housing designed for surface-mounted industrial electrical connections. Part of the EMAS EBM series, this empty metal housing provides a durable enclosure for compatible multipole connector inserts used in machinery, control panels and industrial automation systems.
The EBM10GD27 features two side entries, allowing flexible cable routing from either side of the housing. Its two metal locking handles provide secure mechanical coupling with compatible mating connector components, while the metal construction is designed to withstand demanding industrial operating conditions.
Designed around the 10-pole EBM connector format, the housing supports compatible 16 A connector assemblies and provides IP65 protection when correctly closed and coupled. With a minimum mechanical life of at least 500 operations and an operating temperature range of -40 to +125 °C, it is well suited to industrial machinery and automation installations requiring reliable, serviceable multipole connections.
Key Advantages
- Robust metal multipole connector housing for industrial applications.
- Designed for 10-pole EMAS EBM connector assemblies.
- Two side entries provide flexible cable-routing options.
- Two metal locking handles provide secure connector retention.
- IP65 protection when correctly closed and coupled.
- Wide -40 to +125 °C operating temperature range.
- Surface-mount format for installation on machinery, panels and industrial equipment.
Key Features
- EMAS EBM series multipole connector housing.
- 10-pole configuration.
- Suitable for compatible 16 A EBM connector systems.
- Wall / surface-mount housing.
- Double-side cable entry.
- Two metal locking handles.
- Metal housing construction.
- Minimum mechanical life of ≥500 operations.
- Mechanical operating frequency up to 240 operations/hour.
- Operating temperature range of -40 to +125 °C.
- IP65 protection when correctly closed and coupled.
Reliable Multipole Connections for Industrial Equipment
Multipole connector housings protect compatible inserts and provide a secure mechanical interface for carrying multiple electrical circuits through a single detachable connection. This simplifies installation and maintenance while allowing machinery or equipment sections to be disconnected without individually removing each conductor.
The EMAS EBM series is designed for industrial multipole connection applications and includes complementary plugs, sockets, inserts and housings. The EBM10GD27 combines a rugged metal body, two-side cable access and two metal locking handles to provide a practical surface-mounted connection point for demanding industrial equipment.
Typical Applications
- Industrial machinery and production equipment.
- Electrical control panels and cabinets.
- Factory automation systems.
- Machine power and control connections.
- Conveyor and material-handling equipment.
- Manufacturing and processing machinery.
- OEM equipment and machine building.
