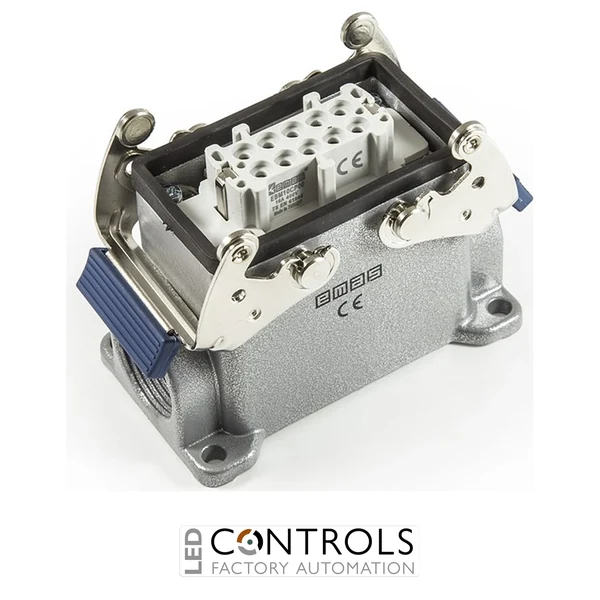

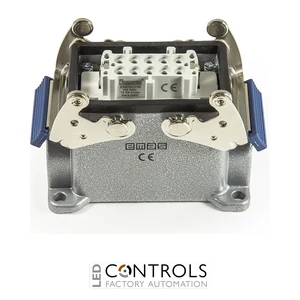

Why Choose the EMAS EBM10PD27 10-Pole 16 A Wall Type Socket?
The EMAS EBM10PD27 is a heavy-duty 10-pole 16 A wall type multipole socket designed for secure electrical connections in industrial machinery, automation equipment and control systems. Part of the EMAS EBM Series, it combines a female connector arrangement with a durable powder-coated metal housing for reliable fixed installations.
The EBM10PD27 features both-side cable entry and two metal locking handles, providing flexible cable routing and secure engagement with a compatible EBM Series mating connector. Its wall type construction makes it particularly suitable for surface mounting on machinery, control cabinets and industrial equipment.
Rated at 16 A, the EBM10PD27 provides an insulation voltage of 690 V and impulse withstand voltage of 6 kV. It also provides IP65 protection in the closed position, a minimum mechanical life of 500 operations and an operating temperature range from -40 to +125 °C.
Key Advantages
- Complete 10-pole 16 A wall type socket for industrial multipole connections.
- Female connector configuration for mating with a compatible EBM Series plug.
- Both-side cable entry provides flexible routing options during installation.
- Two metal locking handles provide secure mechanical connector retention.
- Durable powder-coated metal housing for demanding industrial environments.
- IP65 protection in the closed position helps protect against dust and water ingress.
Key Features
- EMAS EBM Series industrial multipole connector.
- 10-pole female socket configuration.
- 16 A operating current.
- Wall type / surface-mount design.
- Both-side cable entry.
- PG16 connector format.
- Two metal locking handles.
- Powder-coated metal housing.
- 690 V insulation voltage (Ui).
- 6 kV impulse withstand voltage (Uimp).
- IP65 protection in the closed position.
- Minimum mechanical life of 500 operations.
- Minimum electrical life of 100 operations.
- Operating temperature range from -40 to +125 °C.
Reliable Multipole Connections for Industrial Machinery
Multipole connector systems allow several electrical circuits to be connected through a single compact interface, helping simplify machine installation, commissioning and maintenance. A wall-mounted socket creates a stable connection point on equipment, while mechanical locking helps prevent accidental connector separation during industrial operation.
The EMAS EBM10PD27 combines a 10-pole female socket, metal wall type housing, both-side cable entry and two metal locking handles. Its 16 A capacity, high insulation performance and IP65 closed-position protection make it a dependable choice for machinery, production equipment and industrial automation systems.
Typical Applications
- Industrial machinery and machine tools.
- Factory automation and production equipment.
- Electrical control panels and cabinets.
- Conveyor and material handling systems.
- Motor, actuator and machine peripheral connections.
- OEM equipment requiring detachable 10-pole electrical connections.
