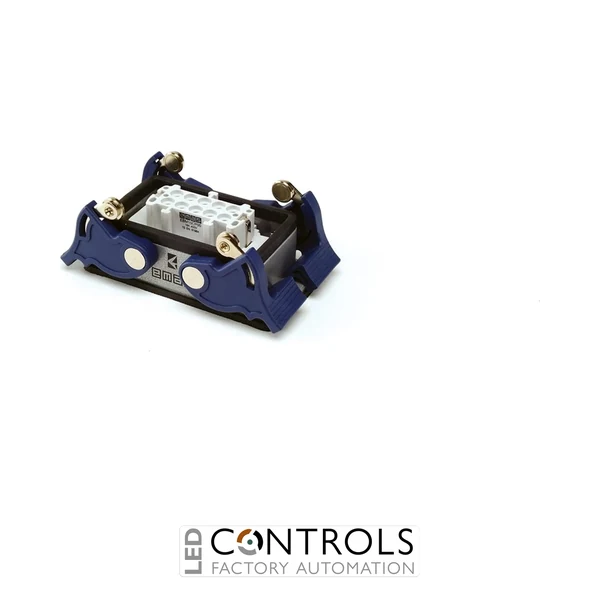

Why Choose the EMAS EBM10PM44 10-Pole 16 A Bulkhead-Mount Socket?
The EMAS EBM10PM44 is a robust 10-pole 16 A machine-type socket designed for dependable multipole electrical connections in industrial machinery, automation equipment and control systems. Part of the EMAS EBM Series, it combines a female connector arrangement with a durable powder-coated metal housing for fixed bulkhead and machine-mounted installations.
The EBM10PM44 features a bottom-entry configuration and four locking handles, providing secure mechanical engagement with a compatible EBM Series mating connector. Its machine-type format provides a stable fixed connection point while helping simplify connection and disconnection during installation, servicing and equipment maintenance.
Rated for an operating current of 16 A, the EBM10PM44 has an insulation voltage of 690 V and an impulse withstand voltage of 6 kV. It also provides IP65 protection in the closed position, a minimum mechanical life of 500 operations and a wide operating temperature range from -40 to +125 °C.
Key Advantages
- Complete 10-pole 16 A machine-type socket for industrial multipole connections.
- Female connection arrangement for mating with a compatible EBM Series plug.
- Bottom-entry configuration suits fixed bulkhead and machine-mounted installations.
- Four locking handles provide secure mechanical connector retention.
- Durable powder-coated metal housing for demanding industrial environments.
- IP65 protection in the closed position helps protect the connection against dust and water ingress.
Key Features
- EMAS EBM Series industrial multipole connector.
- 10-pole female socket configuration.
- 16 A operating current.
- Machine-type / bulkhead-mount design.
- Bottom cable entry.
- Four locking handles.
- Powder-coated metal housing.
- 690 V insulation voltage (Ui).
- 6 kV impulse withstand voltage (Uimp).
- IP65 protection in the closed position.
- Minimum mechanical life of 500 operations.
- Minimum electrical life of 100 operations.
- Operating temperature range from -40 to +125 °C.
- Manufactured to TS EN 61984.
Reliable Machine-Mounted Multipole Connections
Machine-type multipole sockets provide a fixed electrical interface that brings several circuits together within a single detachable connector. This arrangement can simplify machinery wiring, commissioning and maintenance by allowing compatible equipment sections or cable assemblies to be disconnected without individually removing each conductor.
The EMAS EBM10PM44 combines a 10-pole female connection with a metal machine-type housing, bottom entry and four-handle locking arrangement. Its 16 A operating current, high insulation performance and IP65 closed-position protection make it a practical solution for reliable connections across industrial machinery and automation equipment.
Typical Applications
- Industrial machinery and machine tools.
- Factory automation and production equipment.
- Electrical control panels and machine enclosures.
- Conveyor and material handling systems.
- Motor, actuator and machine peripheral connections.
- OEM machinery requiring detachable 10-pole electrical connections.
