Why Choose the EMAS EBM10PM4K 10 Pole 16 A Machine Type Socket with Female Insert?

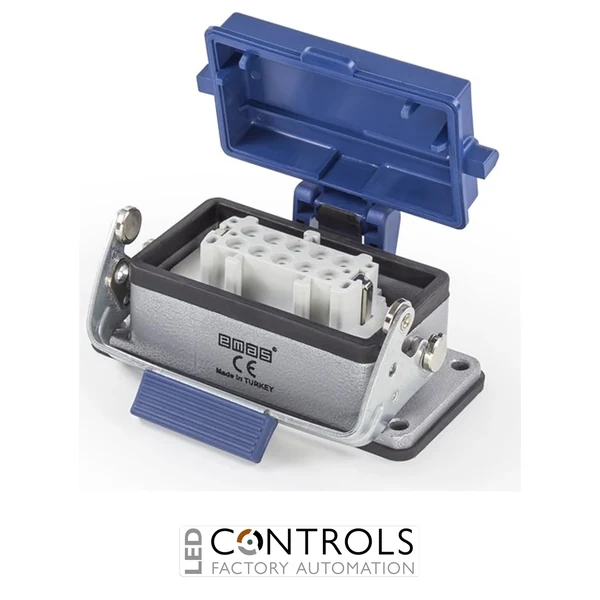

The EMAS EBM10PM4K is a robust 10-pole, 16 A machine-type socket designed to provide a secure fixed multipole connection point on industrial machinery, automation equipment and electrical control systems. Part of the EMAS EBM Series, it combines a female socket insert with a durable powder-coated metal housing for demanding industrial installations.
The EBM10PM4K features a bottom-entry configuration and one metal locking handle, providing secure mechanical engagement with a compatible mating connector. It is rated to IP65 in the closed position and offers an insulation voltage of 690 V together with a 6 kV impulse withstand voltage.
Designed in accordance with TS EN 61984, the EBM10PM4K provides a convenient way to connect and disconnect ten electrical circuits through one industrial connector interface. Its combination of metal construction, female contacts, bottom entry and secure metal locking makes it particularly suitable for machine builders, panel builders and industrial automation installations.
Key Advantages
- Complete 10-pole machine-type socket for industrial multipole connections.
- 16 A operating current for industrial power and control circuits.
- Bottom-entry configuration for convenient machine-mounted installation.
- One metal locking handle provides robust mechanical retention.
- IP65 protection in the closed position for demanding industrial environments.
- Durable powder-coated metal housing.
- 690 V insulation voltage and 6 kV impulse withstand voltage.
- Designed to TS EN 61984 for industrial connector applications.
Key Features
- EMAS EBM Series industrial multipole connector.
- Machine-type socket configuration.
- 10-pole female connection.
- 16 A operating current.
- Bottom-entry design.
- One metal handle locking system.
- Metal body with powder-coated construction.
- IP65 protection degree in the closed position.
- Minimum mechanical life of 500 cycles.
- Operating temperature range of -40 to +125 °C.
The EMAS EBM10PM4K provides a fixed female multipole connection point for machinery and industrial equipment. Combining ten electrical contacts within one connector allows multiple circuits to be connected and disconnected together, helping simplify installation, commissioning and maintenance compared with individually disconnecting field wiring.
Its bottom-entry metal housing is particularly suited to machine-mounted installations, while the metal locking handle provides secure retention of the compatible mating connector. With 16 A operating current, IP65 closed-position protection and a broad operating temperature range, the EBM10PM4K is engineered for dependable use in industrial automation and machine-building applications.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and manufacturing systems.
- Machine-mounted electrical connection points.
- Electrical control panels and equipment enclosures.
- Machine building and OEM installations.
- Modular production and assembly machinery.
- Industrial power and control connections.
- Equipment requiring detachable multipole electrical interfaces.
