Why Choose the EMAS EBM10PU30 10-Pole 16 A Hood with Female Insert?

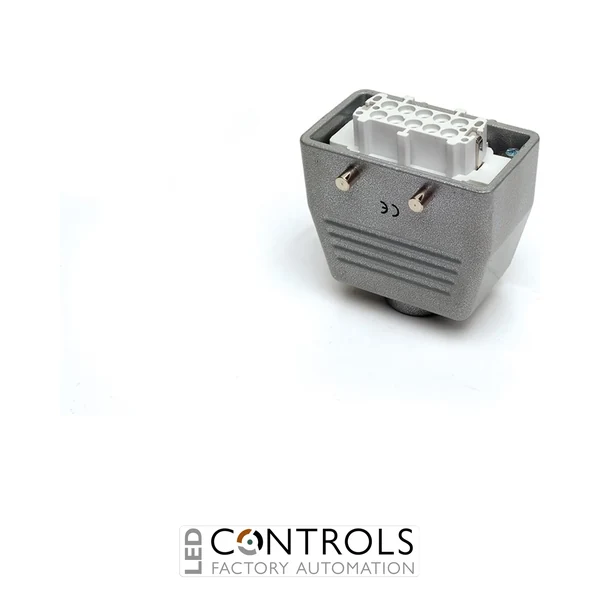

The EMAS EBM10PU30 is a robust 10-pole multipole connector hood with female insert designed for dependable electrical connections in industrial machinery and automation systems. Part of the EMAS EBM series, this metal extension-type socket combines the connector housing and female contact insert in a practical assembly rated for 16 A.
The EBM10PU30 uses a top-entry cable arrangement, making it particularly suitable where cables need to approach the connector in line with the housing rather than from the side. Its durable metal construction and captive-screw design support straightforward installation and reliable service in demanding industrial environments.
With 10 contacts, a 690 V insulation voltage and 6 kV impulse withstand voltage, the EBM10PU30 is engineered for industrial multipole connectivity. The connector provides IP65 protection when correctly assembled with compatible components and an appropriate cable gland, while its wide -40 to +125 °C operating temperature range supports use across demanding machinery and control applications.
Key Advantages
- Complete hood with female insert for convenient multipole connection.
- 10-pole, 16 A configuration for industrial power and control circuits.
- Top cable entry supports neat, practical cable routing.
- Robust metal housing for demanding industrial environments.
- IP65 protection when correctly assembled with compatible components and cable gland.
- Wide -40 to +125 °C operating temperature range.
- Designed and manufactured in accordance with TS EN 61984.
Key Features
- EMAS EBM series industrial multipole connector.
- 10 female contacts.
- 16 A operating current.
- Top-entry cable arrangement.
- Extension-type socket / hood with female insert.
- 690 V insulation voltage (Ui).
- 6 kV impulse withstand voltage (Uimp).
- IP65 protection class.
- Minimum mechanical life of ≥500 operations.
- Minimum electrical life of ≥100 operations.
- AC-15 utilisation category.
- Durable metal body with captive-screw installation design.
Reliable Multipole Connections for Industrial Equipment
Multipole connectors consolidate several electrical circuits into a single detachable connection, simplifying machinery installation, maintenance and replacement. A hood incorporating the female insert provides a convenient cable-end connection that can be quickly coupled with the corresponding male connector assembly.
The EMAS EBM10PU30 is engineered for these demanding industrial connections, combining a metal enclosure with 10 female contacts and top cable entry. Its electrical insulation characteristics, mechanical durability and environmental protection make it suitable for machinery and automation systems where secure and repeatable connections are essential.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Electrical control panels and machine interfaces.
- Conveyor and material-handling systems.
- Motor and actuator connection systems.
- Manufacturing and processing machinery.
- OEM machine building and industrial equipment.
