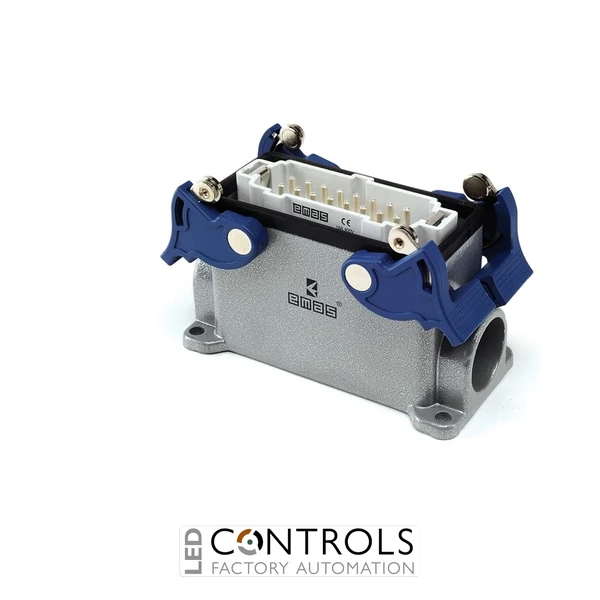

Why Choose the EMAS EBM16FD24 16-Pole Wall Type Plug?
The EMAS EBM16FD24 is a heavy-duty 16-pole industrial multipole wall type plug designed for reliable electrical connections in industrial machinery, automation equipment and control systems. As part of the EMAS EBM series, it combines a male insert with a powder-coated metal housing, both-side cable entry and four-handle locking arrangement for secure and serviceable connections in demanding industrial environments.
With a rated operating current of 16 A and a rated insulation voltage of 690 V, the EBM16FD24 provides sixteen contacts within a robust wall-mounted connector assembly. Its dual side-entry configuration provides flexible cable routing from either side of the housing, helping simplify installation on machinery, control cabinets and industrial equipment.
The EBM16FD24 features a 6 kV impulse withstand voltage, IP65 protection and an operating temperature range of -40 to +125 °C. Its four-handle locking system provides secure connector retention, while the metal construction and high electrical endurance make it suitable for industrial applications requiring a durable multipole connection that can be disconnected for installation, maintenance or equipment servicing.
Key Advantages
- Heavy-duty 16-pole industrial wall type plug for machinery and automation applications.
- 16 A operating current suitable for industrial multipole electrical connections.
- 690 V rated insulation voltage with 6 kV impulse withstand capability.
- Both-side cable entry provides flexible cable routing during installation.
- Four-handle locking arrangement helps provide secure connector retention.
- Durable powder-coated metal housing with IP65 protection for demanding industrial environments.
Key Features
- EMAS EBM industrial multipole connector series.
- 16-pole male insert.
- 16 A rated operating current.
- 690 V rated insulation voltage.
- 6 kV impulse withstand voltage.
- IP65 protection rating.
- Robust powder-coated metal housing.
- Both-side cable entry configuration.
- 4-handle locking arrangement.
- Designed in accordance with TS EN 61984.
Reliable Multipole Connections for Industrial Machinery
Industrial multipole connectors combine several electrical contacts within a single robust interface, helping simplify machine wiring while allowing equipment to be connected and disconnected efficiently during installation, maintenance and servicing. The EMAS EBM16FD24 provides sixteen contacts within a wall-mounted metal assembly, making it suitable for carrying multiple control, signalling and industrial electrical circuits through one detachable connection.
The EBM series is designed for industrial applications where mechanical durability, secure mating and convenient cable routing are important. With its male insert, both-side cable entry, four-handle locking arrangement and IP65 protection, the EBM16FD24 provides machine builders and automation engineers with a dependable fixed connection interface for machinery, control equipment and OEM installations.
Typical Applications
- Industrial machinery and machine building.
- Factory automation equipment.
- Electrical control panels and enclosures.
- Production and processing machinery.
- Machine control and signalling connections.
- Material handling and conveyor systems.
- OEM machinery and industrial installations.
