Why Choose the EMAS EBM16FM44 16-Pole 16 A Machine-Type Plug?

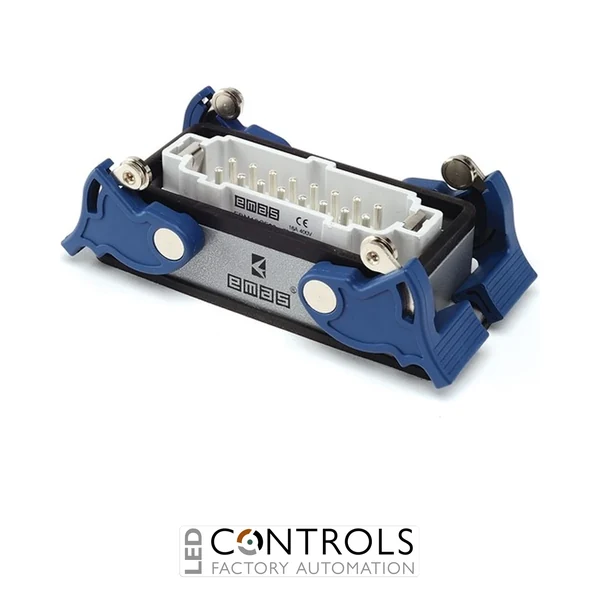

The EMAS EBM16FM44 is a heavy-duty 16-pole machine-type industrial multipole plug with male contacts designed for reliable electrical connections in machinery, automation equipment and industrial control systems. Part of the EMAS EBM Series, it combines a durable metal housing with a 16-pole male connector interface to provide a robust machine-mounted connection point for demanding industrial installations.
Rated at 16 A, the EBM16FM44 has an insulation voltage of 690 V and an impulse withstand voltage of 6 kV. Its bottom-entry configuration supports cable routing through the rear or underside of the machine-mounted housing, while the integrated four-handle locking system provides secure mechanical coupling with a compatible mating connector.
The EBM16FM44 features a powder-coated metal housing and provides IP65 protection in the closed position when correctly assembled and coupled with compatible components. With an operating temperature range of -40 °C to +125 °C, minimum mechanical life of 500 operations and compliance with TS EN 61984, it provides dependable multipole connectivity for demanding industrial environments.
Key Advantages
- Complete 16-pole machine-type plug for industrial multipole connections.
- 16 A operating current suitable for industrial power, control and signalling circuits.
- 690 V insulation voltage provides dependable electrical isolation.
- 6 kV impulse withstand voltage for demanding industrial applications.
- Bottom cable entry supports practical machine and panel installation.
- Four locking handles provide secure mechanical coupling with the mating connector.
- IP65 protection in the closed position for demanding industrial environments.
Key Features
- EMAS EBM Series heavy-duty multipole connector.
- 16-pole male / plug connector configuration.
- Machine-type plug for fixed equipment installation.
- 16 A rated operating current.
- 690 V insulation voltage (Ui).
- 6 kV impulse withstand voltage (Uimp).
- Bottom-entry cable configuration.
- Four-handle locking system for secure connector retention.
- Powder-coated metal housing for industrial durability.
- IP65 protection in the closed position.
Secure Machine-Mounted Connectivity for Industrial Equipment
Machine-type multipole plugs such as the EMAS EBM16FM44 provide a fixed industrial connection interface for multiple electrical circuits within a single robust connector assembly. The 16-pole configuration allows numerous power, control or signalling connections to be grouped together, simplifying equipment installation and making disconnection more convenient during servicing, replacement or machine maintenance.
The bottom-entry arrangement is particularly useful for fixed machinery and panel installations where cables are routed internally or from behind the mounting position. Combined with its four-handle locking system, metal construction and IP65 protection in the closed position, the EBM16FM44 provides a secure and serviceable connection solution for machine building, manufacturing equipment and industrial automation.
Typical Applications
- Industrial machinery and automation systems.
- Machine-mounted electrical connection points.
- Electrical control panels and enclosures.
- Production and manufacturing equipment.
- Material handling and conveyor systems.
- OEM machinery and machine building.
