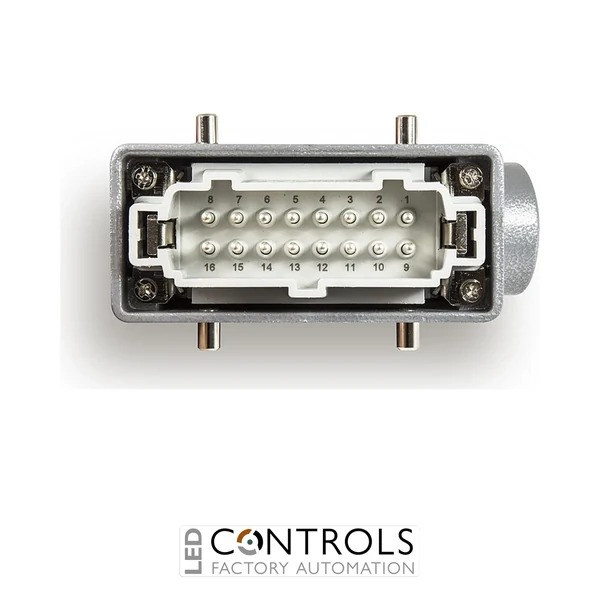

Why Choose the EMAS EBM16FU10 16-Pole 16 A Hood with Male Insert?
The EMAS EBM16FU10 is a robust 16-pole 16 A extension-type plug designed for dependable multipole electrical connections in industrial machinery, automation equipment and control systems. Part of the EMAS EBM Series, it combines a male insert with a durable powder-coated metal hood to provide a practical cable-mounted connection solution.
Designed with a side cable entry, the EBM16FU10 supports convenient cable routing in machine and equipment wiring applications. The standard 16-pole EBM format uses a PG21 cable entry, while the extension-type construction allows the connector to be fitted directly to a cable and mated with a compatible female EBM Series connector.
With an operating current of 16 A, insulation voltage of 690 V and impulse withstand voltage of 6 kV, the EBM16FU10 is engineered for reliable industrial service. It provides IP65 protection in the closed position, a minimum mechanical life of 500 operations and an operating temperature range from -40 to +125 °C.
Key Advantages
- Complete 16-pole 16 A extension-type plug with male insert.
- Durable powder-coated metal housing for demanding industrial environments.
- Side cable entry supports convenient cable routing and installation.
- PG21 cable-entry format for the standard 16-pole EBM configuration.
- IP65 protection in the closed position helps protect against dust and water ingress.
- High 690 V insulation voltage and 6 kV impulse withstand voltage.
Key Features
- EMAS EBM Series industrial multipole connector.
- 16-pole male insert.
- 16 A operating current.
- Extension-type plug / cable hood configuration.
- Side cable entry.
- PG21 cable-entry format.
- Powder-coated metal housing.
- 690 V insulation voltage (Ui).
- 6 kV impulse withstand voltage (Uimp).
- IP65 protection in the closed position.
- Minimum mechanical life of 500 operations.
- Minimum electrical life of 100 operations.
- Operating temperature range from -40 to +125 °C.
- Manufactured to TS EN 61984.
Reliable Cable-Mounted Multipole Connections
Multipole connector systems bring numerous electrical circuits together within a single detachable interface, helping simplify machine installation, commissioning and maintenance. A cable-mounted plug can be disconnected from compatible fixed or extension sockets without individually disturbing each wired circuit, making it particularly useful for modular machinery and equipment that requires regular servicing.
The EMAS EBM16FU10 combines a 16-pole male insert with a robust metal extension hood and side cable entry. Its 16 A current capacity, high insulation performance and IP65 closed-position protection make it a dependable connector for industrial machinery, automation equipment and OEM electrical systems.
Typical Applications
- Industrial machinery and machine tools.
- Factory automation and production equipment.
- Conveyor and material handling systems.
- Machine-to-machine and equipment cable connections.
- Control, motor and actuator wiring systems.
- OEM machinery requiring detachable 16-pole electrical connections.
