Why Choose the EMAS EBM16PM4K 16-Pole 16 A Machine-Type Socket?

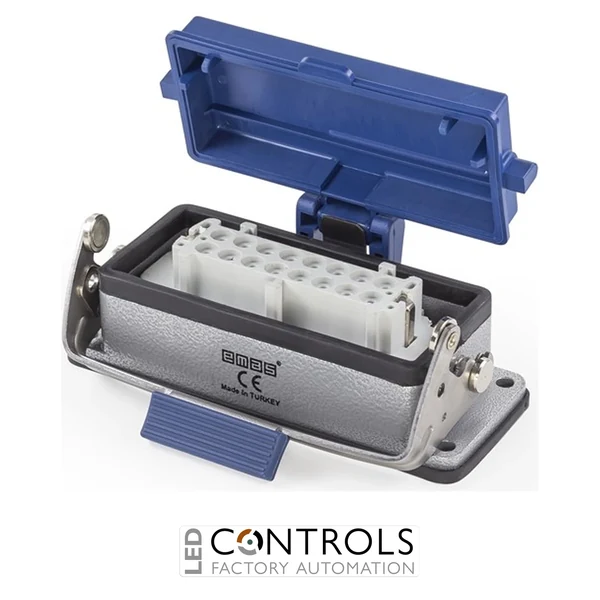

The EMAS EBM16PM4K is a robust 16-pole machine-type multipole socket designed for reliable electrical connections in industrial machinery, automation and control systems. Part of the EMAS EBM series, it combines a durable powder-coated metal housing with a female socket insert to provide a practical panel-mounted connection rated at 16 A.
The EBM16PM4K features a bottom-entry configuration and single metal locking handle, providing secure mechanical coupling with compatible EBM mating connectors. The K-version is associated with the EBM series spring-cover configuration, helping protect the socket interface when it is not connected.
With 16 contacts, a 690 V insulation voltage and 6 kV impulse withstand voltage, the EBM16PM4K is engineered for demanding industrial connectivity. It provides IP65 protection when correctly closed and assembled, has a minimum mechanical life of 500 operations and operates across a wide -40 to +125 °C temperature range.
Key Advantages
- Complete 16-pole machine-type socket with female insert.
- 16 A operating current for industrial power and control connections.
- Bottom-entry configuration supports organised installation and wiring.
- Single metal locking handle provides secure mechanical coupling.
- Spring-cover configuration helps protect the connector interface when uncoupled.
- Durable powder-coated metal housing for industrial environments.
- IP65 protection when correctly closed and assembled.
Key Features
- EMAS EBM series industrial multipole connector.
- 16-pole female socket configuration.
- 16 A operating current.
- Machine-type socket for equipment and panel installation.
- Bottom cable entry.
- 1 metal locking handle.
- Protective spring-cover configuration.
- 690 V insulation voltage (Ui).
- 6 kV impulse withstand voltage (Uimp).
- IP65 protection rating when correctly closed.
- Minimum mechanical life of ≥500 operations.
- Wide -40 to +125 °C operating temperature range.
Reliable Machine Connections for Industrial Equipment
Multipole machine sockets consolidate multiple electrical circuits into one detachable connection, simplifying machinery installation, commissioning and maintenance. A machine-mounted female socket provides a fixed connection point that can be quickly coupled to a compatible cable-mounted male connector without individually disconnecting each conductor.
The EBM16PM4K combines a 16-contact female socket, bottom-entry metal housing and secure metal locking mechanism for reliable industrial service. Its spring-cover configuration also provides additional protection for the connector interface when the mating plug is removed.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Electrical control panels and machine interfaces.
- Conveyor and material-handling systems.
- Motor, actuator and machine control connections.
- Manufacturing and processing equipment.
- OEM automation systems and machine building.
