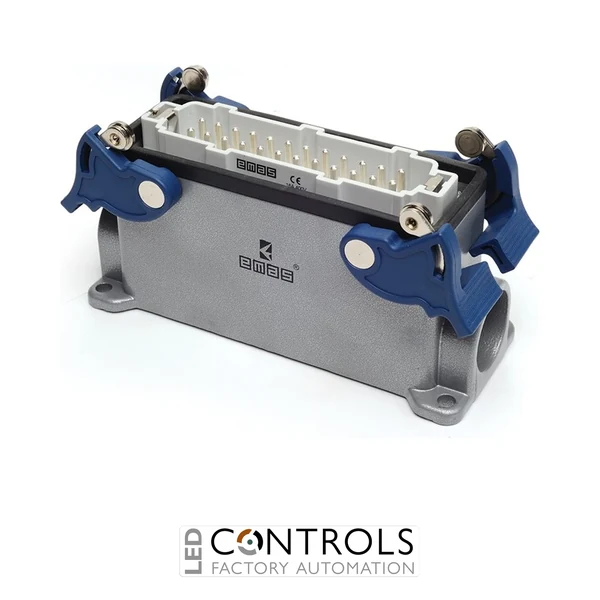

Why Choose the EMAS EBM24FD24 24-Pole 16 A Wall Type Plug?
The EMAS EBM24FD24 is a heavy-duty 24-pole 16 A wall type multipole plug designed for reliable electrical connections in industrial machinery, automation equipment and control systems. Part of the EMAS EBM Series, it combines a 24-pole male insert with a durable powder-coated metal housing to provide a complete fixed industrial connection point.
The EBM24FD24 features a distinctive both-side cable-entry configuration and four locking handles. This arrangement provides additional flexibility when routing cables into a surface-mounted connector installation, while the four locking points provide secure mechanical engagement with a compatible female EBM Series mating connector.
Rated at 16 A, the EBM24FD24 has an insulation voltage of 690 V and impulse withstand voltage of 6 kV. It is manufactured to TS EN 61984 and provides IP65 protection in the closed position, alongside a wide operating temperature range from -40 to +125 °C for demanding industrial environments.
Key Advantages
- Complete 24-pole 16 A wall type plug with male insert.
- Both-side cable entry provides flexible cable-routing options.
- Four-handle locking arrangement provides secure connector engagement.
- Durable powder-coated metal housing for industrial environments.
- IP65 protection in the closed position helps protect against dust and water ingress.
- High 690 V insulation voltage and 6 kV impulse withstand voltage.
Key Features
- EMAS EBM Series industrial multipole connector.
- 24-pole male plug configuration.
- 16 A operating current.
- Wall type / surface-mount design.
- Both-side cable entry.
- PG21 connector format.
- Four locking handles.
- Powder-coated metal housing.
- 690 V insulation voltage (Ui).
- 6 kV impulse withstand voltage (Uimp).
- IP65 protection in the closed position.
- Minimum mechanical life of 500 operations.
- Minimum electrical life of 100 operations.
- Operating temperature range from -40 to +125 °C.
- Manufactured to TS EN 61984.
Reliable High-Density Multipole Connections
Industrial multipole connectors allow numerous electrical circuits to be brought together within one detachable interface, helping simplify machinery wiring, commissioning and servicing. With 24 poles available within a single connector assembly, the EBM24FD24 is particularly useful where a relatively high number of control, signalling or power conductors need to pass through a compact machine connection point.
The EMAS EBM24FD24 combines a 24-pole male insert with a robust metal wall type housing, both-side cable entry and four-handle locking arrangement. Its 16 A operating current, high insulation performance and IP65 closed-position protection make it a dependable choice for industrial machinery, automated production equipment and OEM electrical systems.
Typical Applications
- Industrial machinery and machine tools.
- Factory automation and production equipment.
- Electrical control panels and machine enclosures.
- Conveyor and material handling systems.
- Motor, actuator, sensor and machine peripheral connections.
- Production-line and modular equipment.
- OEM machinery requiring detachable 24-pole electrical connections.
