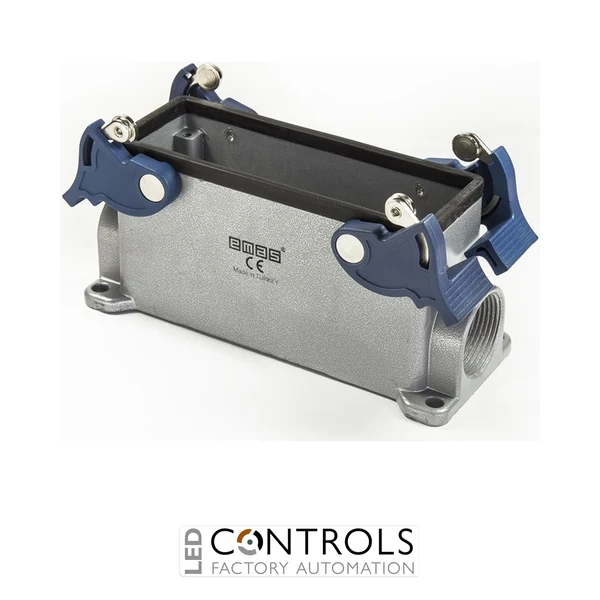

Why Choose the EMAS EBM24GD24 24-Pole Wall Type Empty Hood?
The EMAS EBM24GD24 is a robust 24-pole wall type empty hood designed for heavy-duty industrial multipole connector systems. Part of the EMAS EBM Series, it provides a durable surface-mounted housing solution for machinery, control panels and automation equipment where secure and serviceable multi-circuit connections are required.
This model features a both-side cable entry arrangement and a four-handle locking configuration, giving installers flexibility when routing cables while helping maintain a secure mechanical connection with compatible EBM components. Its powder-coated metal construction is suited to demanding industrial environments and provides long-term mechanical durability.
The EBM24GD24 is designed for 24-pole EBM Series connector assemblies and is associated with the series' 16 A connector format. The housing provides IP65 protection in the closed position and supports reliable operation across a wide temperature range, making it suitable for factory automation, machinery and panel-building applications.
Key Advantages
- Heavy-duty 24-pole wall type empty hood for industrial multipole connectors.
- Both-side cable entry allows flexible wiring and cable routing.
- Four-handle locking arrangement provides secure mechanical retention.
- IP65 protection when closed for demanding industrial environments.
- Durable powder-coated metal housing.
- Designed for easy cabling and use with universal EBM Series inserts.
Key Features
- EMAS EBM Series industrial multipole connector housing.
- 24-pole format.
- Wall type empty hood construction.
- Both-side entry cable arrangement.
- Four-handle locking system.
- IP65 protection degree in the closed position.
- Metal body with powder-coated finish.
- Operating temperature range of -40 to +125 °C.
- Minimum mechanical life of 500 operations.
- Mechanical operating frequency up to 240 operations per hour.
Reliable Housing for Industrial Multipole Connections
Industrial multipole connector housings provide mechanical protection and secure cable entry for detachable multi-circuit electrical connections. By combining numerous conductors within one connector assembly, they can simplify machinery wiring, reduce installation complexity and make equipment maintenance more efficient.
The EMAS EBM Series is designed for industrial installations requiring durable metal connector housings, flexible cable-entry options and secure locking mechanisms. The EBM24GD24 provides a fixed wall-mounted housing with dual-side entry and four-handle retention for demanding control, automation and machinery applications.
Typical Applications
- Industrial machinery and production equipment.
- Electrical control panels and cabinets.
- Factory automation systems.
- Machine power and control interfaces.
- Conveyor and material handling systems.
- Industrial installations requiring detachable multipole connections.
