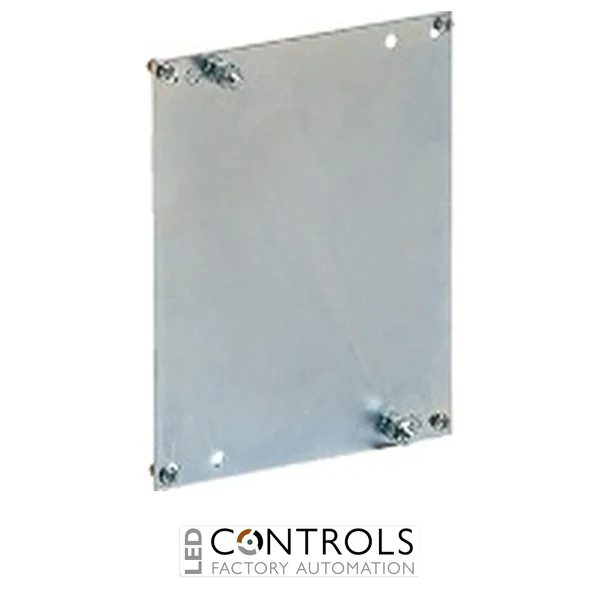

Why Choose the ILME APF12 Mounting Plate?
The ILME APF12 is a purpose-designed internal mounting plate for compatible ILME APV12, APS12 and APW12 containing boxes. It provides a secure internal surface for installing electrical, control and automation components while helping maintain an organised and professional enclosure assembly.
Designed specifically for ILME size 12 enclosures, the APF12 has nominal dimensions of 111 × 133 × 1.5 mm. Its enclosure-specific dimensions allow straightforward integration without the need to fabricate a separate mounting plate, making it a practical accessory for panel builders, machine manufacturers and electrical installers.
The APF12 is supplied with two earth terminals, inserts and fixing screws, providing the essential hardware required for installation within the appropriate enclosure. Its robust metallic plate construction creates a dependable mounting platform for electrical equipment used in industrial control, automation, machinery and distribution applications.
Key Advantages
- Purpose-designed for ILME APV12, APS12 and APW12 boxes.
- Provides a secure internal platform for mounting electrical and control components.
- Compact 111 × 133 mm format matched to compatible size 12 enclosures.
- 1.5 mm plate thickness provides a robust component-mounting surface.
- Supplied with two earth terminals for convenient protective conductor connections.
- Includes inserts and fixing screws for straightforward installation.
- Reduces fabrication work by providing an enclosure-specific mounting solution.
- Suitable for industrial control, automation and machine-building installations.
Key Features
- ILME AP series enclosure accessory.
- Designed for APV12, APS12 and APW12 containing boxes.
- 111 mm height.
- 133 mm width.
- 1.5 mm thickness.
- Metal mounting plate construction.
- Supplied with two earth terminals.
- Includes inserts and fixing screws.
- Designed for internal installation in compatible size 12 boxes.
- Provides a practical mounting surface for electrical and automation components.
Reliable Component Mounting for ILME AP Enclosures
An internal mounting plate provides a dedicated surface for securing terminals, relays, control equipment and other electrical devices without requiring components to be fixed directly to the enclosure body. Using a mounting plate designed specifically for the enclosure also simplifies component positioning and helps produce a clean, serviceable internal layout.
The ILME APF12 is matched to APV12, APS12 and APW12 boxes and is supplied with fixing hardware for convenient installation. The inclusion of two earth terminals further supports professional enclosure assembly by providing suitable connection points for protective conductors within the installation.
Typical Applications
- ILME APV12 containing box assemblies.
- ILME APS12 containing box assemblies.
- ILME APW12 containing box assemblies.
- Industrial control and automation enclosures.
- Machine-building electrical systems.
- Terminal and junction assemblies.
- Instrumentation and process-control installations.
- Electrical equipment requiring an internal component mounting platform.
