Why Choose the Ilme CDSF18 Female Insert?

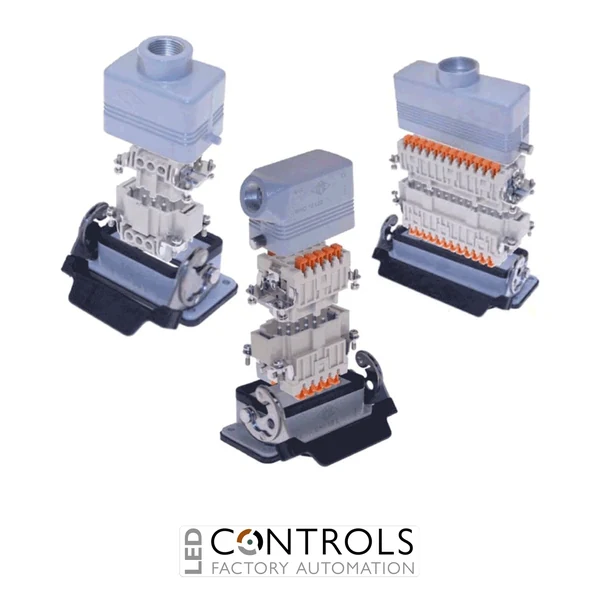

The Ilme CDSF18 is a female industrial connector insert with 18 poles plus protective earth, designed for reliable multipole connections in machinery, automation and control equipment. Part of the Ilme CDS series, it uses spring terminal connections and fits compatible size 57.27 rectangular connector enclosures.
Rated at 10 A and 400 V, the CDSF18 offers a rated impulse withstand voltage of 6 kV and pollution degree 3. Integrated turned silver-plated female contacts eliminate the need for separately purchased crimp contacts and accommodate conductors from 0.14–2.5 mm².
The CDSF18 combines high contact density with convenient spring termination, making it well suited to production machinery and control installations requiring numerous circuits within one detachable interface. Its self-extinguishing polycarbonate construction, -40 to +125 °C operating range and mechanical life of at least 500 mating cycles support dependable industrial use.
Key Advantages
- 18 poles plus protective earth provide a high-density multipole connection.
- 10 A, 400 V rating for industrial electrical and control circuits.
- Spring terminal connection enables direct conductor termination without separate crimp contacts.
- Accepts conductors from 0.14–2.5 mm² / AWG 26–14.
- Integrated turned silver-plated female contacts.
- 6 kV impulse withstand voltage with pollution degree 3.
- Designed for at least 500 mating cycles.
- Size 57.27 format for compatible Ilme industrial connector enclosures.
Key Features
- Ilme CDS series industrial connector insert.
- 18 poles + PE configuration.
- Female contact arrangement.
- Spring terminal connection.
- 10 A rated current.
- 400 V rated voltage.
- 6 kV rated impulse withstand voltage.
- 600 V UL/CSA rated voltage.
- 0.14–2.5 mm² conductor range.
- AWG 26–14 conductor compatibility.
- Turned silver-plated contacts.
- Self-extinguishing UL 94 V-0 polycarbonate construction.
- Operating temperature from -40 to +125 °C.
Efficient Spring Terminal Connections for Industrial Wiring
The CDSF18 uses spring terminal technology to provide secure conductor retention without requiring separate crimp contacts. It accepts conductors from 0.14–2.5 mm², while conductors fitted with crimped ferrules can be used up to 1.5 mm². Ilme specifies a conductor stripping length of 9–11 mm for correct preparation.
With 18 contact positions plus protective earth in a single size 57.27 insert, the CDSF18 provides an efficient detachable interface for complex machinery wiring. When combined with a compatible mating insert and suitable Ilme enclosure, it enables multiple control, signal and electrical circuits to be connected and disconnected together for easier installation and maintenance.
Typical Applications
- Industrial machinery and machine-tool wiring.
- Factory automation and production equipment.
- Electrical control panels and switchgear assemblies.
- Robotics and automated handling systems.
- Control and signal circuit connections.
- OEM machinery and equipment manufacturing.
- Conveyor and material handling equipment.
- High-density detachable industrial wiring connections.
