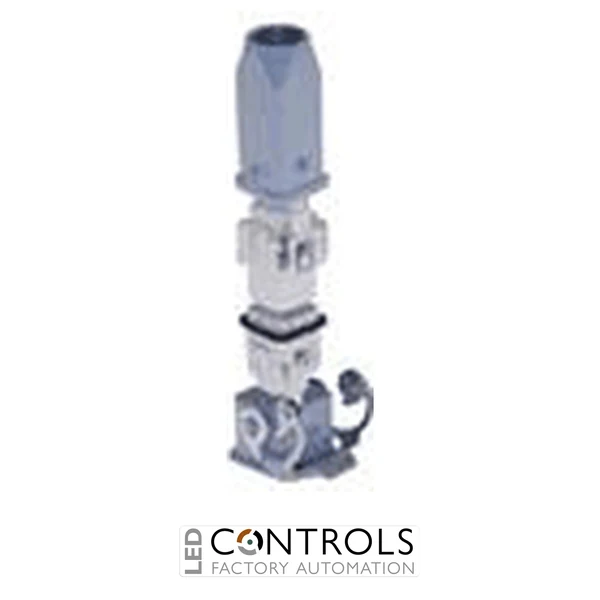

Why Choose the Ilme CKAX03IA Angled Bulkhead Mounting Housing?
The Ilme CKAX03IA is a compact and robust metal angled bulkhead mounting housing designed for industrial multipole connector installations. Part of the Ilme CK and MK enclosure family, it uses the compact size 21.21 format and provides an angled connector interface for machinery, control panels and automation equipment where installation space is restricted.
The housing features an epoxy-coated die-cast aluminium body combined with a durable stainless steel locking lever. Its angled bulkhead configuration allows the mating connector to project away from the mounting surface, helping simplify connector access and cable routing in compact machine and panel layouts.
The CKAX03IA is designed for compatible 21 × 21 mm Ilme connector inserts and has no cable entry because it mounts directly to a panel or equipment surface. It provides IP44 protection as standard, with IP66, IP67 and IP69 protection available when correctly assembled with the appropriate Ilme CKR 65 or CKR 65 D sealing kit and compatible components.
Key Advantages
- Compact angled bulkhead housing for space-restricted industrial installations.
- Strong epoxy-coated die-cast aluminium construction for dependable mechanical protection.
- Stainless steel lever provides durable and secure connector locking.
- Size 21.21 format supports compatible compact Ilme multipole inserts.
- Angled configuration improves connector accessibility and cable-routing flexibility.
- IP44 protection as standard, with enhanced IP66 / IP67 / IP69 protection available using the appropriate sealing kit.
Key Features
- Ilme CKAX series metallic connector enclosure.
- Size 21.21 angled bulkhead mounting format.
- Compatible with 21 × 21 mm inserts.
- Single stainless steel locking lever.
- Epoxy-coated die-cast aluminium body.
- Angled mounting design for improved connector access.
- Bulkhead mounting configuration with no cable entry.
- IP44 standard degree of protection.
- Enhanced IP66 / IP67 / IP69 protection available with appropriate CKR 65 sealing components.
Reliable Connector Protection with Angled Mounting
Angled bulkhead connector housings provide a fixed equipment interface while positioning the mating connector away from the mounting surface. This arrangement can improve accessibility and help manage cable routing where a conventional straight connector installation would interfere with surrounding machinery, enclosure doors or other components.
The Ilme CKAX03IA combines a compact 21.21 footprint with a metal body and stainless steel locking lever, making it suitable for industrial installations requiring repeated connection and disconnection. When correctly assembled with compatible Ilme inserts and sealing components, the housing provides a durable and service-friendly multipole connector interface.
Typical Applications
- Industrial machinery and automation equipment.
- Electrical control panels and cabinets.
- Compact machine-mounted connector interfaces.
- Packaging and production machinery.
- Material handling and conveyor systems.
- OEM equipment requiring angled detachable electrical connections.
