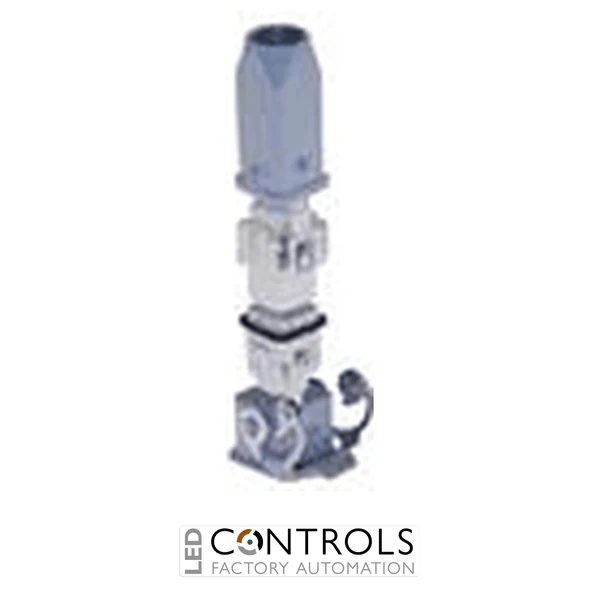

Why Choose the ILME CKM03 Male Insert?
The ILME CKM03 is a compact and reliable male multipole connector insert designed for industrial machinery, automation and electrical equipment. Part of the ILME CK series, this size 21.21 insert provides 3 poles plus protective earth (3P+PE) and uses conventional screw terminal connections for secure and straightforward field wiring.
Rated at 10 A and 230/400 V, the CKM03 is designed for dependable power and control connections within compatible ILME connector hoods and housings. Its turned silver-plated copper-alloy contacts provide reliable electrical conductivity, while the polycarbonate insulating body provides mechanical strength and electrical insulation for demanding industrial applications.
The screw terminals accept conductors from 0.75–2.50 mm² (AWG 18–14), providing flexibility for a wide range of machine wiring requirements. With a rated impulse withstand voltage of 4 kV, pollution degree 3 and compatibility with size 21.21 enclosures, the CKM03 provides a compact solution for detachable industrial electrical connections.
Key Advantages
- Compact 3 poles + PE male industrial connector insert.
- 10 A rated current for power and control applications.
- 230/400 V rated voltage for industrial electrical systems.
- Simple and dependable screw terminal connection.
- Accepts conductors from 0.75–2.50 mm².
- Turned silver-plated contacts provide reliable electrical connectivity.
Key Features
- ILME CK series male connector insert.
- 3 poles + protective earth (3P+PE).
- 10 A rated current.
- 230/400 V rated voltage.
- 4 kV rated impulse withstand voltage.
- Pollution degree 3.
- Size 21.21 compact connector format.
- Screw terminals for 0.75–2.50 mm² / AWG 18–14 conductors.
Reliable Power and Control Connections for Industrial Machinery
Industrial connector inserts such as the ILME CKM03 provide a removable electrical interface between machinery, control panels and external equipment. The three power or control contacts plus dedicated protective-earth connection allow multiple conductors to be connected through one compact rectangular connector assembly, simplifying installation and maintenance.
The CKM03 uses conventional screw terminals that provide secure conductor termination without requiring specialised crimping equipment. When installed in a compatible ILME size 21.21 hood or housing, the insert forms part of a robust multipole connector system suitable for machine building, factory automation and industrial electrical installations.
Typical Applications
- Industrial machinery and factory automation systems.
- Motor and actuator electrical connections.
- Control panels and electrical cabinets.
- Machine tools and production equipment.
- Conveyor and material handling systems.
- OEM machinery and detachable power or control connections.
