Why Choose the ILME CNEM16TN Male Screw Insert?

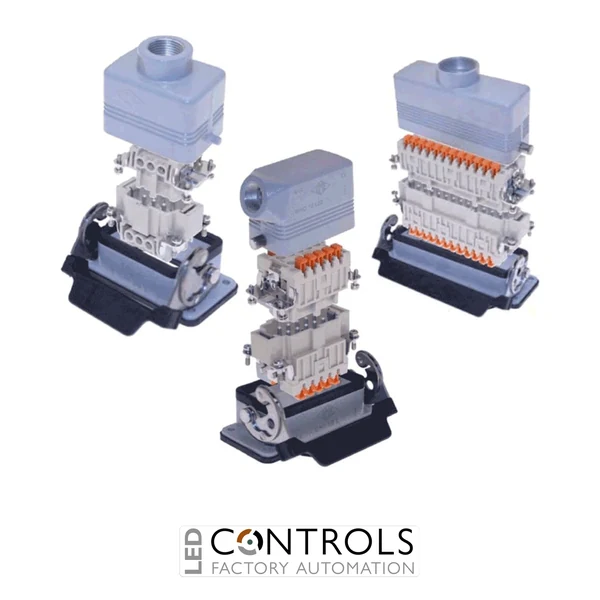

The ILME CNEM16TN is a male multipole connector insert from the ILME CNE series, designed as the 17–32 numbered section of a 32-pole plus protective-earth connector arrangement. It provides 16 physical poles plus protective earth and is intended for use alongside the corresponding 1–16 insert within a size 77.62 double-height enclosure.
The CNEM16TN uses an indirect screw terminal connection with conductor-protection plate, making it suitable for non-prepared conductors. It accepts conductor cross-sections from 0.50–4.00 mm² (AWG 20–12), providing a secure and serviceable termination method for industrial machinery, automation and control-panel wiring.
Rated at 16 A and 500 V with a 6 kV rated impulse withstand voltage, the CNEM16TN provides dependable performance in demanding industrial connector systems. Turned silver-plated contacts, a durable polycarbonate insert body and at least 500 mating cycles support reliable long-term use.
Key Advantages
- Forms the 17–32 numbered section of a 32-pole plus earth connector arrangement.
- 16 A, 500 V electrical rating for industrial power and control circuits.
- Screw terminal connection with conductor-protection plate for non-prepared conductors.
- Accepts conductors from 0.50–4.00 mm² (AWG 20–12).
- Turned silver-plated contacts provide dependable electrical connectivity.
- Size 77.62 format for compatible double-height ILME connector enclosures.
Key Features
- ILME CNE series male connector insert.
- 16 physical poles plus protective earth, numbered 17–32.
- Used within a 32-pole plus protective-earth connector configuration.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Pollution degree 3.
- Screw terminal connection.
- Conductor range of 0.50–4.00 mm².
- AWG 20–12 conductor compatibility.
- Turned silver-plated contacts.
- Size 77.62 enclosure format.
The CNEM16TN is specifically intended for the second half of a 32-pole plus protective-earth CNE connector assembly. Its contacts are numbered 17–32, complementing the corresponding 1–16 insert and allowing a high number of electrical circuits to be accommodated within a size 77.62 double-height connector enclosure.
The screw-terminal system provides a straightforward and serviceable wiring method, while the conductor-protection plate allows non-prepared conductors to be securely terminated. This combination makes the CNEM16TN well suited to machinery and automation systems where high-density connections, robust construction and convenient maintenance are required.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Electrical control panels and machine interfaces.
- Conveyor and material handling equipment.
- Production lines and manufacturing systems.
- High-density 32-pole industrial connector assemblies.
