Why Choose the Ilme CQF05 Female Crimp Insert?

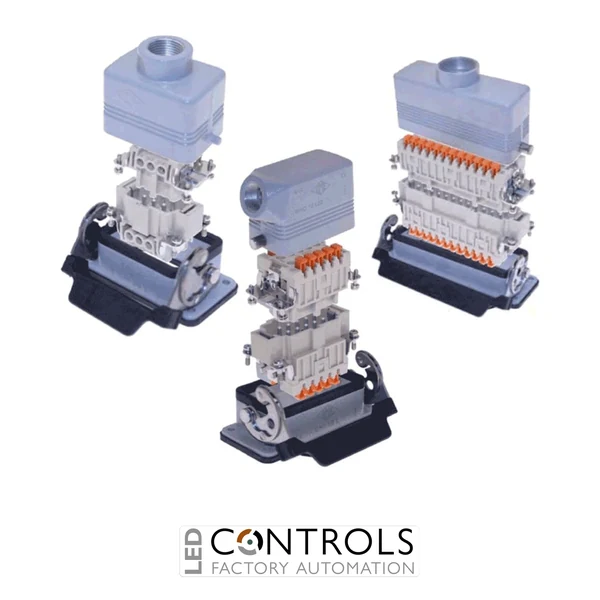

The Ilme CQF05 is a compact female multipole connector insert designed for reliable electrical connections in industrial machinery, automation systems and control equipment. Part of the Ilme CQ series, it provides 5 poles plus protective earth (5+PE) and uses crimp termination for secure and dependable conductor connections.
Designed for use with compatible Ilme rectangular connector housings, the CQF05 has a rated current of 16 A and a rated voltage of 230/400 V. Its compact 21.21 size allows multiple circuits to be accommodated within a space-efficient industrial connector assembly, making it particularly useful for machine building and panel wiring applications.
The insert is manufactured from self-extinguishing thermoplastic insulating material and is designed for use with separately ordered 16 A female crimp contacts. With a rated impulse withstand voltage of 4 kV, pollution degree 3 and an operating temperature range of -40 to +125 °C, the CQF05 provides a robust connection platform for demanding industrial environments.
Key Advantages
- Compact 5-pole plus protective earth female insert for industrial connectors.
- 16 A rated current for power and control connection applications.
- 230/400 V rated voltage suitable for industrial electrical systems.
- Reliable crimp termination for secure conductor connections.
- Compact 21.21 insert size helps minimise connector footprint.
- Wide -40 to +125 °C operating temperature range for demanding environments.
Key Features
- Ilme CQ series standard connector insert.
- Female connection configuration.
- 5 poles plus protective earth (5+PE).
- 16 A maximum rated current.
- 230/400 V rated voltage.
- 4 kV rated impulse withstand voltage.
- Crimp connection with contacts ordered separately.
- Compact 21.21 size format.
- Self-extinguishing thermoplastic insulating material.
- UL 94 V-0 insulation material flammability classification.
Reliable Crimp Connectivity for Industrial Equipment
Multipole inserts such as the Ilme CQF05 allow several electrical circuits and a protective earth connection to be combined within one compact rectangular connector assembly. Crimp termination creates a mechanically secure connection between the conductor and contact, making the system well suited to machinery where dependable electrical performance and straightforward servicing are important.
The CQF05 is designed to be assembled with compatible Ilme housings and separately selected female crimp contacts. Its compact 21.21 format, 16 A current capability and robust insulating construction make it a practical choice for machine builders, panel manufacturers and automation engineers requiring removable industrial connections.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Electrical control panels and switchgear.
- Robotics and automated manufacturing equipment.
- Conveyors and material handling systems.
- Machine building and OEM equipment.
- Industrial power and control connections.
