Why Choose the Ilme CYMA16 Male 200 A Crimp Contact?
The Ilme CYMA16 is a heavy-duty male crimp contact from the ILME CY series, engineered for high-current industrial connector applications. Rated at 200 A, it is designed for termination to 16 mm² / AWG 6 conductors and provides a robust electrical connection for demanding power-distribution and machinery applications.
Manufactured from copper alloy with a turned, silver-plated contact surface, the CYMA16 provides low-resistance electrical connectivity and reliable mechanical performance. ILME specifies a contact resistance of ≤0.2 mΩ and a mechanical life of at least 500 mating cycles for the CY 200 A contact system.

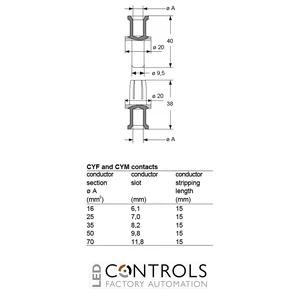

The CYMA16 is intended for compatible ILME 200 A MIXO modular inserts, including the CX 01 Y system. Its conductor slot diameter is 6.1 mm and the recommended conductor stripping length is 15 mm. For reliable termination, ILME recommends using its approved crimping tools for CY series 200 A contacts.
Key Advantages
- High-current 200 A male contact for demanding industrial power connections.
- Designed specifically for 16 mm² / AWG 6 conductors.
- Silver-plated copper-alloy construction provides a reliable conductive interface.
- Precision turned contact design for robust connector performance.
- Low contact resistance of ≤0.2 mΩ.
- Mechanical durability of at least 500 mating cycles.
- Compatible with ILME 200 A MIXO modular connector inserts.
Key Features
- ILME CY series male crimp contact.
- 200 A rated current.
- 16 mm² conductor cross-section.
- AWG 6 conductor size.
- Precision turned contact.
- Silver-plated contact surface.
- Copper-alloy contact material.
- 6.1 mm conductor slot diameter.
- 15 mm conductor stripping length.
- Contact resistance of ≤0.2 mΩ.
- Mechanical life of ≥500 cycles.
High-Current Crimp Connectivity for MIXO Systems
The Ilme CYMA16 forms part of the CY family of 200 A crimp contacts used with ILME's high-current MIXO modular connector system. The crimp connection creates a mechanically secure, low-resistance termination between the 16 mm² conductor and the precision-machined contact, making the contact suitable for industrial systems carrying substantial electrical loads.
When installed in the appropriate male MIXO insert and crimped using an ILME-approved tool, the CYMA16 provides a serviceable high-current connection that can be repeatedly mated and disconnected. This makes it particularly useful for modular machinery, motors, power distribution and production equipment where reliable detachable power connections are required.
Typical Applications
- ILME MIXO 200 A modular connectors.
- Industrial motors and high-power drive systems.
- Heavy-duty machinery power connections.
- Industrial power distribution equipment.
- Factory automation and production machinery.
- Material handling and conveyor systems.
- Modular and detachable machine power connections.
