Why Choose the ILME JMPP24.25 JEI-P Series Surface Mounting Housing?

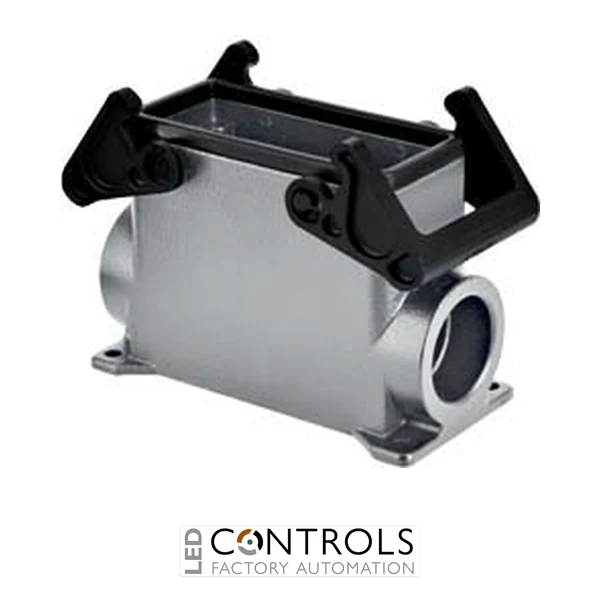

The ILME JMPP24.25, also referenced as JMPP 24.25 and JMPP2425, is a JEI-P series surface mounting housing designed for heavy-duty multipole connector installations. With an ILME size 104.27 interface, it provides a robust enclosure platform for compatible connector inserts used in industrial machinery, automation, control and electrical equipment.
The housing incorporates two thermoplastic polyamide locking levers, providing secure connector closure while avoiding metal locking levers. A built-in NBR gasket supports reliable sealing between correctly assembled connector components, while the housing provides an IP65 degree of protection when properly installed with compatible components.
A single M25 cable entry provides the cable access required for surface-mounted installations. With a wide operating temperature range of -40 °C to +125 °C, a grey RAL 7040 finish and a weight of approximately 354 g, the JMPP24.25 is engineered for dependable industrial connector installations across demanding machinery and control applications.
Key Advantages
- Surface mounting housing for fixed industrial connector installations.
- Part of the ILME JEI-P series for standard heavy-duty applications.
- Two thermoplastic polyamide locking levers provide secure connector closure.
- Single M25 cable entry for straightforward cable installation.
- IP65 protection when correctly assembled with compatible components.
- Wide operating temperature range of -40 °C to +125 °C.
- NBR gasket supports effective environmental sealing.
- Compatible with ILME connector solutions using the 104.27 enclosure size.
Key Features
- ILME JEI-P series.
- Surface mounting housing.
- Size 104.27.
- 2 locking levers.
- Lever material: Polyamide (PA).
- Gasket material: NBR.
- M25 cable entry.
- IP65 degree of protection.
- Operating temperature range of -40 °C to +125 °C.
- RAL 7040 grey finish.
- DNV and BV certifications.
- Designed for industrial multipole connector applications.
Reliable Protection for Heavy-Duty Multipole Connections
Surface mounting housings provide a fixed enclosure interface for industrial multipole connectors, protecting the connector insert and helping maintain a secure connection between fixed and mating components. The 104.27 size of the JMPP24.25 supports a range of compatible ILME inserts, making the housing suitable for numerous power, control and signal connection arrangements.
The JEI-P design combines an IP65 enclosure rating with thermoplastic locking levers and an NBR gasket for dependable service in industrial environments. Its M25 cable entry and broad operating temperature range make the JMPP24.25 a practical choice for machinery manufacturers, automation engineers, control panel builders and industrial electrical installers.
Typical Applications
- Industrial machinery multipole connections.
- Factory automation equipment.
- Control panel and electrical cabinet connections.
- Machine building and OEM equipment.
- Industrial control and signal wiring.
- Manufacturing and processing machinery.
- Fixed heavy-duty connector installations.
- Industrial electrical and automation systems.
