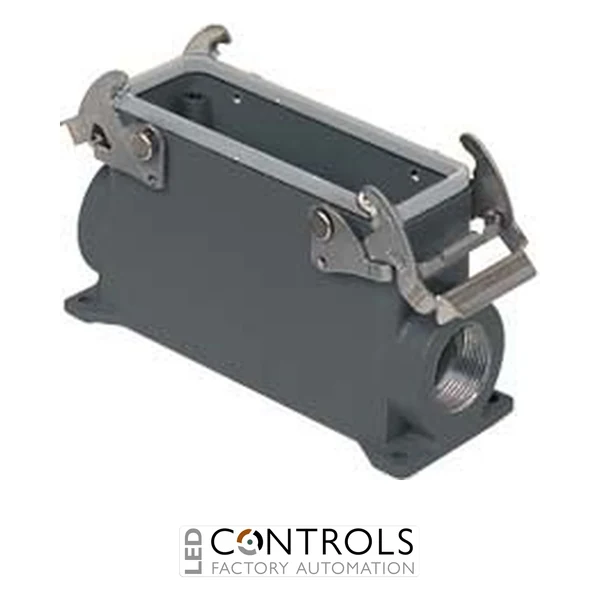

Why Choose the Ilme M7APE24.32 E-Xtreme® V-TYPE Surface Mounting Housing?
The Ilme M7APE24.32 is a heavy-duty E-Xtreme® V-TYPE surface mounting housing designed for demanding industrial multipole connector installations. Featuring 2 stainless steel locking levers, a single M32 cable entry and Ilme size 104.27 construction, it provides a robust enclosure solution for machinery, automation systems and harsh industrial environments.
The housing is manufactured in a high construction format and uses an FKM gasket to support reliable sealing in challenging operating conditions. Its stainless steel levers provide durable mechanical locking, while the surface mounting configuration allows secure installation directly onto machine frames, control cabinets and industrial equipment.
With IP66, IP67 and IP69 protection when correctly assembled, plus an operating temperature range of -40 °C to +125 °C, the M7APE24.32 is suited to applications exposed to dust, water, washdown and demanding environmental conditions. Its RAL 7016 grey finish and rugged E-Xtreme® V-TYPE construction make it ideal for reliable industrial connectivity.
Key Advantages
- Heavy-duty E-Xtreme® V-TYPE surface mounting housing for demanding industrial applications.
- 2 stainless steel levers provide durable and secure connector locking.
- M32 cable entry for straightforward cable gland installation.
- Standard Ilme size 104.27 for compatible multipole connector assemblies.
- IP66 / IP67 / IP69 protection when correctly assembled with compatible components.
- Wide -40 °C to +125 °C operating temperature range for harsh industrial environments.
Key Features
- Ilme E-Xtreme® V-TYPE series.
- Surface mounting housing.
- High construction design.
- 2 stainless steel locking levers.
- Single M32 cable entry.
- Size 104.27.
- IP66 / IP67 / IP69 degree of protection.
- FKM gasket for enhanced environmental sealing.
- RAL 7016 grey finish.
- DNV, BV and CQC certified.
Rugged Connectivity for Extreme Industrial Environments
Industrial multipole connector housings protect inserts and conductor terminations while providing the mechanical locking and environmental sealing required for reliable detachable electrical connections. In harsh installations, enclosure materials, gasket performance and locking hardware are particularly important for maintaining protection against dust, moisture and washdown.
The Ilme M7APE24.32 combines a high-construction size 104.27 housing with stainless steel locking levers, an FKM gasket and high ingress protection. This makes it particularly suitable for industrial machinery and automation systems where connector assemblies are exposed to demanding operating conditions and frequent maintenance access.
Typical Applications
- Heavy-duty industrial machinery.
- Factory automation and robotic systems.
- Electrical control cabinets and machine panels.
- Food, beverage and washdown environments.
- Outdoor and harsh-environment industrial equipment.
- Detachable multipole power, control and signal connections.
