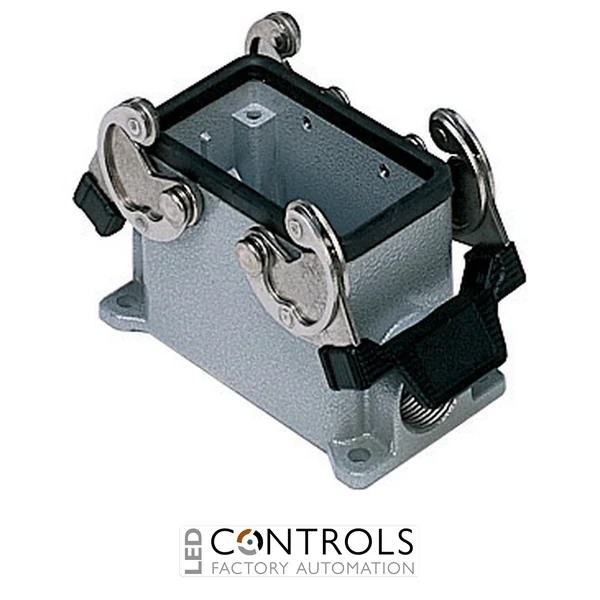

ILME MAP10.240 high-construction surface mounting housing with two locking levers, two M40 cable entries, size 57.27 and IP65 / IP66 / IP69 protection for industrial multipole connector applications.
£32.96
The ILME MAP10.240 is a robust surface mounting housing for industrial multipole connectors designed for dependable electrical connections in machinery, automation and control systems. Its high-construction format, dual locking levers and two M40 cable entries make it well suited to fixed installations where secure mating, generous wiring space and strong environmental protection are required.
Designed for use with compatible ILME connector inserts and hoods, the MAP10.240 provides a secure panel or machine-mounted interface for detachable multipole connections. The two-lever closing system helps maintain reliable mechanical engagement, while the high-construction body provides additional internal space for cable termination and routing.
With a size 57.27 interface, 2 × M40 cable entries and IP65 / IP66 / IP69 protection when correctly assembled, the MAP10.240 is suitable for demanding industrial environments. Its RAL 7040 grey finish, rubber gasket and wide -40 °C to +125 °C operating temperature range support reliable use across machinery, production equipment and automation installations.
Surface mounting housings such as the ILME MAP10.240 provide a secure fixed enclosure for multipole electrical connections used on machinery, panels and industrial equipment. They allow compatible connector inserts to be mounted directly to equipment while providing a robust interface for detachable hood-mounted cable assemblies.
The MAP10.240 combines a high-construction enclosure with two locking levers and twin M40 cable entries, helping installers manage larger or multiple cable runs while maintaining secure mechanical engagement. Its high ingress protection and wide operating temperature range make it suitable for demanding industrial environments where reliable connectivity is essential.
| HS Code | 85389099 |
|---|---|
| Country of Manufacture | Italy |
| Manufacturer | ILME |
| Model | MAP10.240 |
| SKU | MAP10240 |
| Product type | Surface mounting housing |
| Size | 57.27 |
| Construction | High construction |
| Closing type | 2 levers |
| Lever material | Polyamide (PA) with stainless steel core |
| Cable entry | 2 × M40 |
| Protection rating | IP65 / IP66 / IP69 |
| Gasket material | Rubber |
| Colour | RAL 7040 grey |
| Operating temperature | -40 °C to +125 °C |
| RoHS conformity | Compliant |
| REACH SVHC substances | No |
| Certifications | DNV, BV |
| UL category | ECBT2 |
| cUL category | ECBT8 |
| eCl@ss 8.1 | 27440202 |
| ETIM 7.0 | EC000437 |
The MAP10.240 is a surface mounting housing used to protect and secure compatible ILME multipole connector inserts on machinery, panels and industrial equipment.
The housing uses the ILME size 57.27 enclosure format and has a high-construction design that provides additional internal space for cable termination.
The MAP10.240 features two M40 cable entries, providing flexible routing options for compatible industrial cable glands and fittings.
The housing uses two locking levers with polyamide and stainless steel components to provide secure connection with compatible ILME connector hoods.
The MAP10.240 provides IP65 / IP66 / IP69 protection when correctly assembled with compatible ILME components and suitable cable-entry accessories.
ILME industrial connector housings provide robust mounting, secure locking and dependable environmental protection for multipole electrical connections used throughout machinery, automation and control installations.
