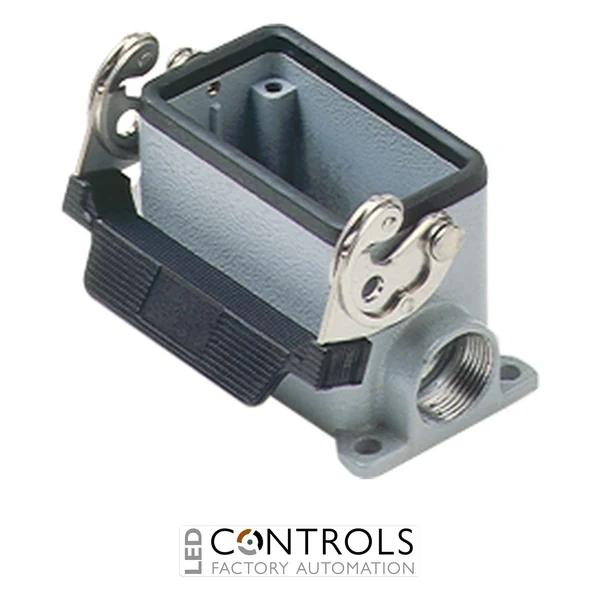

Ilme MAP10L40 is a size 57.27 surface mounting multipole connector housing with one locking lever and an M40 cable entry for robust fixed connections in industrial machinery and automation systems.
£26.70
The Ilme MAP10L40 is a robust surface mounting housing for heavy-duty multipole connectors, designed to provide a secure fixed connection point on industrial machinery, automation equipment and control systems. Featuring a size 57.27 connector interface, one locking lever and an M40 cable entry, it is designed for use with compatible Ilme inserts and mating connector hoods.
The single-lever locking arrangement provides straightforward and secure mechanical retention of a compatible peg-equipped Ilme hood. This makes the MAP10L40 well suited to industrial installations where connectors must remain firmly coupled during operation while still allowing convenient disconnection for maintenance, installation or equipment servicing.
Its M40 threaded cable entry provides a practical route for incoming industrial cabling through a suitable cable gland, while the surface mounting configuration allows the housing to be installed directly onto machinery or equipment. When correctly assembled with compatible Ilme components and appropriate sealing accessories, the connector enclosure can provide a high level of protection against dust and water ingress.
Surface mounting connector housings provide a fixed interface between machine wiring and detachable multipole connector assemblies. The Ilme MAP10L40 combines a size 57.27 enclosure with a single locking lever, allowing a compatible hood and insert assembly to be securely connected while remaining straightforward to disconnect whenever machinery requires maintenance or reconfiguration.
The M40 cable entry provides generous provision for incoming cabling and can be fitted with an appropriate cable gland for cable retention and sealing. Together with compatible Ilme inserts, hoods and accessories, the MAP10L40 provides a practical connection solution for power, control and auxiliary circuits in industrial equipment.
| HS Code | 85389099 |
|---|---|
| Country of Manufacture | Italy |
| Manufacturer | Ilme |
| Model | MAP10L40 |
| Manufacturer reference | MAP 10 L40 |
| Product type | Surface mounting multipole connector housing |
| Connector size | 57.27 |
| Closing type | 1 lever |
| Cable entry | M40 |
| Number of cable entries | 1 |
| Mounting type | Surface mounting |
| Application | Heavy-duty industrial multipole connections |
The MAP10L40 is a surface mounting multipole connector housing designed to provide a fixed connection point for compatible Ilme inserts and mating connector hoods on industrial machinery and equipment.
The MAP10L40 uses the Ilme size 57.27 connector format.
The housing features a single M40 threaded cable entry for use with a suitable industrial cable gland or compatible cable-entry accessory.
The MAP10L40 has one locking lever designed to engage with the locking pegs of a compatible Ilme mating hood.
Yes. The MAP10L40 is a surface mounting housing intended to provide a fixed connector interface on machinery, equipment and other suitable mounting surfaces.
The MAP10L40 is the connector enclosure housing. A compatible Ilme multipole insert and the required mating connector components are selected separately according to the electrical application.
The MAP10L40 is suitable for industrial machinery, automation systems, motor and actuator connections, conveyors and OEM equipment requiring a robust detachable multipole electrical interface.
Ilme heavy-duty multipole connector systems are widely used by machine builders, panel builders and automation engineers to provide robust, serviceable electrical connections in industrial machinery, production equipment and control systems.
