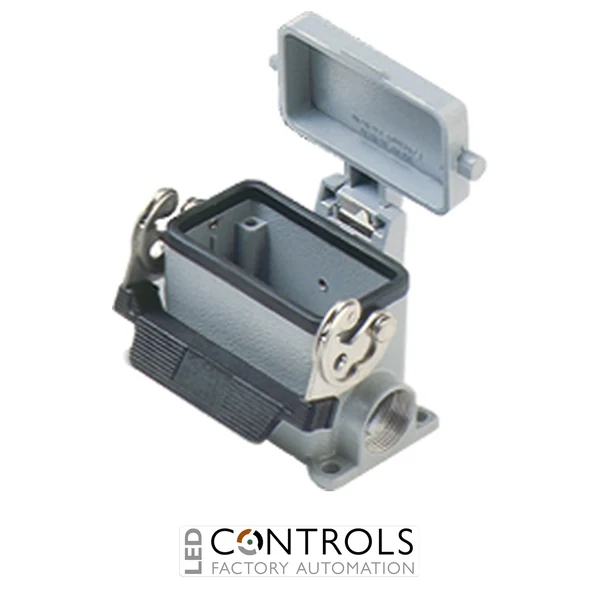

Why Choose the ILME MAP10LS40 Surface Mounting Housing?
The ILME MAP10LS40, also referenced as MAP 10 LS40, is a high-construction surface mounting housing designed for heavy-duty industrial multipole connector applications. Built around the ILME size 57.27 interface, it provides a fixed enclosure platform for compatible connector inserts used throughout machinery, automation, control and industrial electrical installations.
The MAP10LS40 features a single locking lever together with an integrated metal protective cover. The cover protects the connector interface when it is disconnected, while the lever provides secure closure when mating with a compatible ILME hood or connector enclosure. This combination is particularly useful on fixed equipment where the connector may be disconnected during maintenance, changeovers or transportation.
A single M40 cable entry provides generous cable access, while the high-construction housing offers additional internal space for cable routing and conductor termination. The MAP10LS40 provides an IP65 degree of protection when correctly assembled with compatible components and suitable cable-entry accessories.
Key Advantages
- Surface mounting design for fixed industrial connector installations.
- Size 57.27 high-construction housing provides additional internal wiring space.
- Single locking lever provides straightforward and secure connector closure.
- Integrated metal protective cover protects the interface while disconnected.
- Single M40 cable entry accommodates suitable industrial cable glands and accessories.
- IP65 protection when correctly assembled with compatible components.
- Designed for compatible ILME heavy-duty multipole connector inserts and enclosures.
- Suitable for machinery, automation, control panels and OEM equipment.
Key Features
- ILME heavy-duty connector enclosure.
- Surface mounting housing.
- Size 57.27.
- High construction.
- 1 locking lever.
- Integrated metal cover.
- Single M40 cable entry.
- IP65 degree of protection.
- Fixed mounting format for industrial equipment.
- Designed for compatible ILME multipole connector systems.
Fixed Connector Housing with Integrated Metal Cover
Surface mounting connector housings provide a permanent enclosure interface on machinery, control cabinets and other industrial equipment. The high-construction design of the MAP10LS40 provides additional internal space for conductor termination and cable management, while its M40 cable entry enables an appropriately sized cable gland or compatible entry accessory to be installed.
The integrated metal cover is particularly valuable where the mating connector is regularly removed. When disconnected, the cover can close the housing interface to help protect the internal connector components from environmental contamination. Together with its single-lever locking arrangement and IP65 protection, this makes the MAP10LS40 a practical enclosure for serviceable industrial connector systems.
Typical Applications
- Industrial machinery multipole connections.
- Factory automation equipment.
- Machine building and OEM equipment.
- Control panels and electrical cabinets.
- Manufacturing and processing machinery.
- Industrial power, control and signal connections.
- Equipment requiring protected disconnectable connections.
- Fixed heavy-duty connector installations.
