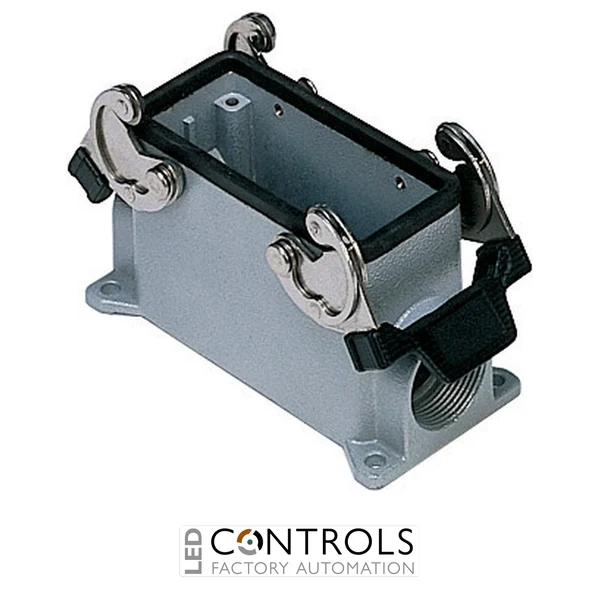

ILME MAP16.32 C-TYPE high-construction surface mounting housing with two locking levers, an M32 cable entry, size 77.27 interface and IP65 / IP66 / IP69 protection for industrial multipole connector applications.
£33.68
The ILME MAP16.32 is a robust surface mounting housing for industrial multipole connectors designed to provide dependable mechanical and environmental protection in machinery, automation and electrical control applications. As part of the ILME C-TYPE enclosure series, it combines a high-construction format, two locking levers and an M32 cable entry for reliable integration with compatible ILME connector inserts and mating hoods.
Designed for fixed mounting on machinery, panels and industrial equipment, the MAP16.32 provides a secure equipment-side interface for detachable heavy-duty multipole connections. Its two-lever closing system ensures secure mechanical mating, while the high-construction enclosure provides additional internal space for cable termination and wiring.
Featuring a size 77.27 interface and M32 cable entry, the MAP16.32 provides IP65 / IP66 / IP69 protection when correctly assembled with compatible components. This combination of secure locking, increased internal space and high ingress protection makes it well suited to demanding industrial automation, manufacturing and machine-building environments.
Surface mounting housings such as the ILME MAP16.32 provide a secure fixed enclosure for multipole electrical connections used on machinery, control panels and industrial equipment. A compatible connector insert can be installed within the housing, creating a robust equipment-side interface for detachable cable-mounted connector assemblies.
The MAP16.32 combines a high-construction enclosure with a two-lever locking arrangement and M32 cable entry. This configuration provides additional termination space while enabling secure mechanical engagement and high environmental protection, helping maintain reliable connectivity in industrial automation, manufacturing and machine-building installations.
| HS Code | 85389099 |
|---|---|
| Country of Manufacture | Italy |
| Manufacturer | ILME |
| Series | C-TYPE |
| Model | MAP16.32 |
| Alternative part number | MAP 16.32 |
| Product type | Surface mounting housing |
| Multipole size | 77.27 |
| Construction | High construction |
| Closing type | 2 levers |
| Cable entry | M32 |
| Number of cable entries | 1 |
| Protection rating | IP65 / IP66 / IP69 |
| Mounting type | Surface mounting |
| EAN13 / Barcode | 8015747051668 |
The MAP16.32 is a surface mounting housing used to protect and secure compatible ILME multipole connector inserts on machinery, control panels and industrial equipment.
The housing uses the ILME size 77.27 enclosure format and has a high-construction design that provides additional internal space for cable termination.
The MAP16.32 features a single M32 cable entry for use with a compatible industrial cable gland or fitting.
The housing uses two locking levers to provide secure mechanical mating with a compatible ILME connector hood.
The MAP16.32 provides IP65 / IP66 / IP69 protection when correctly assembled with compatible ILME connector components and suitable cable-entry accessories.
ILME C-TYPE connector housings provide robust fixed mounting, secure locking and dependable environmental protection for multipole electrical connections used throughout industrial machinery, automation and control installations.
