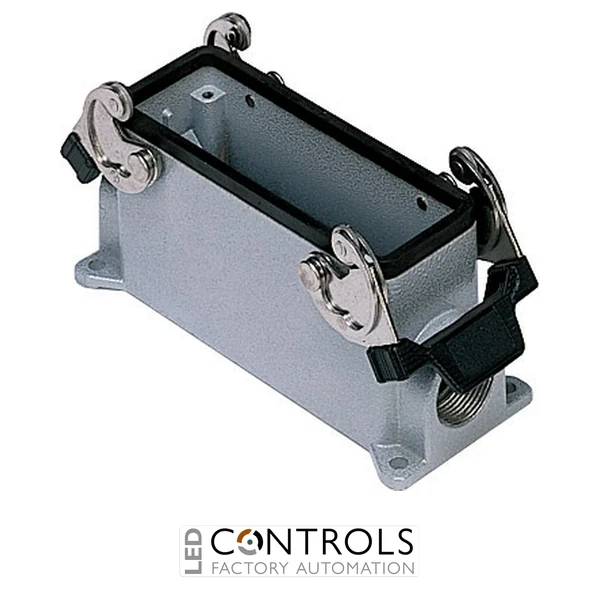

Ilme MAP24.32 is a high-construction size 104.27 surface mounting connector housing with two locking levers, an M32 cable entry and IP65, IP66 and IP69 protection when correctly assembled.
£35.26
The Ilme MAP24.32 is a robust surface mounting housing for heavy-duty multipole connectors, designed to provide secure mechanical protection for electrical connections in industrial machinery, automation and control applications. Part of the Ilme C-TYPE series, this housing combines durable construction with a reliable two-lever locking system for demanding industrial installations.
Designed for size 104.27 connector inserts, the MAP24.32 features two locking levers and a single M32 cable entry. Its high-construction format provides additional internal space while the surface mounting design enables straightforward installation onto machinery, panels and industrial equipment.
The MAP24.32 provides IP65, IP66 and IP69 protection when correctly assembled with compatible components. With an operating temperature range of -40 °C to +125 °C, stainless steel lever components and an NBR gasket, it is engineered for dependable service across a wide range of industrial environments.
Heavy-duty connector housings such as the Ilme MAP24.32 provide the mechanical enclosure and locking arrangement required for reliable multipole electrical connections. The two-lever closing system securely mates the housing with a compatible connector half while allowing convenient disconnection for installation, inspection and maintenance.
The combination of high construction, an M32 cable entry and strong ingress protection makes the MAP24.32 suitable for machinery and control systems operating in demanding environments. Its broad operating temperature range further supports dependable use across industrial manufacturing, automation and machine-building applications.
| HS Code | 85389099 |
|---|---|
| Country of Manufacture | Italy |
| Manufacturer | Ilme |
| Series | C-TYPE |
| Model | MAP24.32 |
| Product type | Surface mounting connector housing |
| Connector size | 104.27 |
| Construction | High construction |
| Closing type | 2 levers |
| Cable entry | M32 |
| Mounting type | Surface mounting |
| Protection rating | IP65 / IP66 / IP69 |
| Operating temperature | -40 °C to +125 °C |
| Lever materials | Stainless steel / polyamide (PA) |
| Gasket material | NBR |
| Colour | RAL 7040 grey |
| Weight | 520 g |
| Certifications | DNV / BV |
| RoHS conformity | Compliant |
| EAN | 8015747052016 |
The MAP24.32 is a surface mounting housing designed to protect and secure compatible Ilme heavy-duty multipole connector inserts in industrial electrical installations.
The housing is designed for size 104.27 compatible Ilme connector inserts.
The MAP24.32 is equipped with a single M32 cable entry.
When correctly assembled with compatible components, the MAP24.32 provides IP65, IP66 and IP69 protection.
The housing has a specified operating temperature range of -40 °C to +125 °C.
Ilme heavy-duty connector housings are designed for professional industrial connectivity applications, providing secure locking, robust mechanical protection and dependable performance for machinery, automation and electrical control systems.
