Why Choose the ILME MKASV20 EMC Hood?

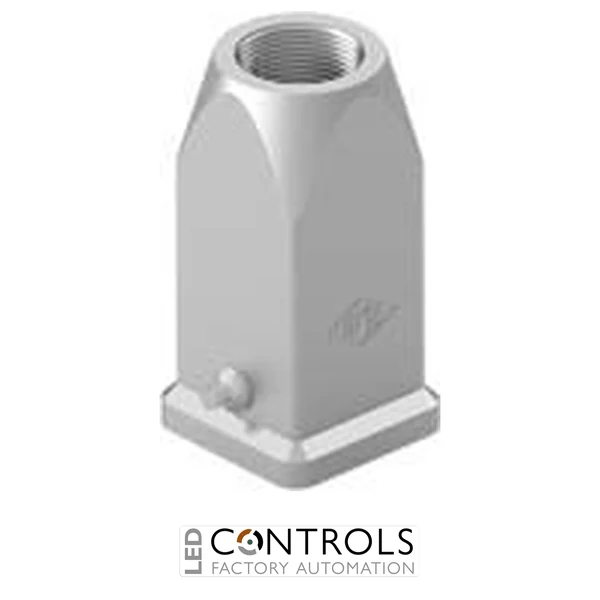

The ILME MKASV20 is a compact and robust metal hood for heavy-duty industrial connectors, designed to provide reliable protection and electromagnetic compatibility in machinery, automation and electrical installations. As part of the specialised ILME EMC enclosure series, it features a conductive zinc die-cast construction that is particularly suited to applications where electromagnetic interference needs to be controlled.
Designed for ILME connector inserts in size 21.21, the MKASV20 combines a straight top-entry configuration with an M20 cable entry. The hood is equipped with two locking pegs for mating with a compatible lever-equipped housing, providing a secure and practical heavy-duty connector assembly.
The MKASV20 offers an operating temperature range of -40 °C to +125 °C and supports protection from IP44 up to IP66 / IP67 / IP69 when correctly configured with the appropriate CKR 65 sealing kit. Its compact metal construction makes it ideal for industrial equipment where space, durability and EMC performance are important.
Key Advantages
- Compact EMC metal connector hood for demanding industrial applications.
- Size 21.21 format for compatible ILME rectangular connector inserts.
- M20 top cable entry for straightforward cable routing.
- Conductive zinc die-cast construction designed for EMC applications.
- Two locking pegs for secure mating with compatible lever housings.
- Protection up to IP66 / IP67 / IP69 with the appropriate CKR 65 sealing kit.
Key Features
- ILME EMC enclosure series.
- Heavy-duty metal connector hood.
- Size 21.21.
- Top cable entry.
- M20 threaded cable entry.
- Closing arrangement with 2 pegs.
- Zinc die-cast main construction.
- RAL 7040 grey finish.
- Operating temperature range of -40 °C to +125 °C.
- Designed for industrial applications requiring electromagnetic compatibility.
Reliable EMC Protection for Industrial Connections
EMC connector enclosures such as the ILME MKASV20 provide a robust interface for electrical connections used in environments where electromagnetic interference can affect sensitive equipment and signals. The conductive metal enclosure forms part of an EMC-compatible connector system while also protecting the connector insert from mechanical exposure.
The ILME EMC series is designed for industrial installations where reliable electrical connections, compact dimensions and electromagnetic compatibility are required. When assembled with compatible ILME inserts, housings, cable glands and sealing components, the MKASV20 provides a durable connection solution for modern automation and machinery applications.
Typical Applications
- Industrial machinery and automation systems.
- Motor drives and variable frequency drive installations.
- Servo motor and motion control systems.
- Industrial control and instrumentation equipment.
- Robotics and automated production machinery.
- Electrical installations requiring improved EMC performance.
