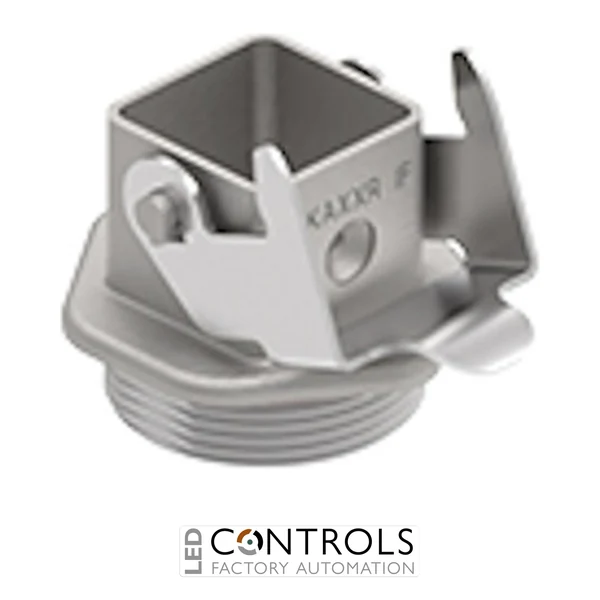

MKAXXR IF ILME Bulkhead housing metal with lever M32 Size 21.21 180c
ILME MKAXXRIF CKA series metal bulkhead mounting housing with lever locking, M32 cable entry and size 21.21 connector format for industrial connections.
SKU:MKAXXRIFAlt SKU:MKAXXRIFMPN:MKAXXR IF
Price
List Price£10.64ex VAT
Your Price (ex VAT)
£10.64
Manufacturer Lead TimePlease contact us for a delivery time before you order
Get the best trade pricesTrade exclusive
Create a trade account to unlock exclusive pricing, special offers and more.
The ILME MKAXXRIF is a durable metal bulkhead mounting housing designed to provide secure protection and reliable connection for industrial heavy duty rectangular connectors. Part of the ILME CKA connector series, this housing is suitable for automation, machinery and industrial electrical installations requiring robust connector mounting.
Manufactured with a strong metal body and fitted with a reliable locking lever, the MKAXXRIF provides secure connector retention and mechanical protection in demanding industrial environments. Its bulkhead mounting format allows straightforward installation through equipment panels and electrical enclosures.
Featuring a size 21.21 connector housing, M32 cable entry and a 180° orientation, the MKAXXRIF is designed for compatible ILME inserts where a protected and dependable industrial connection is required.
Key Advantages
Robust ILME CKA series bulkhead mounting housing.
Metal construction provides excellent mechanical protection.
180° connector housing orientation for flexible mounting arrangements.
Size 21.21 connector format for compatible ILME inserts.
Suitable for machinery, automation and industrial electrical systems.
Key Features
ILME CKA connector series.
Model: MKAXXRIF.
Bulkhead mounting housing.
Size 21.21 connector format.
M32 cable entry.
180° housing orientation.
Metal housing construction.
Lever locking mechanism.
Compatible with ILME rectangular connector inserts.
Reliable Industrial Connector Protection
Heavy duty connector housings such as the ILME MKAXXRIF protect electrical interfaces from mechanical stress, dust and moisture while ensuring secure mounting of industrial connector inserts. The robust metal construction supports dependable operation in demanding applications.
The ILME CKA series is designed for machine builders and automation engineers requiring modular and reliable connector solutions. The MKAXXRIF combines durable construction with a practical bulkhead mounting design for efficient system integration.
Typical Applications
Industrial automation machinery.
Machine building and OEM equipment.
Control panels and electrical cabinets.
Robotics and manufacturing systems.
Production and processing equipment.
Industrial power and signal connections.
Technical Specifications
Tick the specs you need, then view products that match.
Cable Entry
M32
Device Type
Housing
Frame Size
21.21
Housing Material
Metal (die-cast aluminium)
Product Series
ILME C-Type
HS Code
85389099
Country of Manufacture
Italy
Manufacturer
ILME
Series
CKA
Model
MKAXXRIF
Product type
Bulkhead mounting housing
Housing material
Metal
Connector size
21.21
Cable entry
M32
Housing orientation
180°
Locking system
Lever
Protection rating
IP66 / IP67 / IP69 (with suitable accessories)
Operating temperature
-40 °C to +125 °C
IP Rating
IP66, IP67, IP69
Frequently Asked Questions
What is the ILME MKAXXRIF used for?
The ILME MKAXXRIF is a metal bulkhead mounting housing designed to protect and secure compatible ILME heavy duty connector inserts in industrial applications.
What cable entry does the MKAXXRIF have?
The MKAXXRIF features an M32 cable entry for connection of suitable cable glands.
What connector size is the ILME MKAXXRIF?
The housing is designed for size 21.21 ILME connector inserts in the CKA series.
What locking system does the MKAXXRIF use?
The MKAXXRIF uses a lever locking mechanism to provide secure connector retention.
Where is this bulkhead housing typically installed?
The MKAXXRIF is typically installed on industrial machinery, automation equipment and electrical control systems requiring protected heavy duty connections.
Trusted by Industrial Automation Professionals
ILME CKA series connector housings are widely used by automation engineers and machine builders to provide reliable, secure and durable electrical connections in industrial environments.
Cable Entry
M32
Device Type
Housing
Frame Size
21.21
Housing Material
Metal (die-cast aluminium)
Product Series
ILME C-Type
HS Code
85389099
Country of Manufacture
Italy
Manufacturer
ILME
Series
CKA
Model
MKAXXRIF
Product type
Bulkhead mounting housing
Housing material
Metal
Connector size
21.21
Cable entry
M32
Housing orientation
180°
Locking system
Lever
Protection rating
IP66 / IP67 / IP69 (with suitable accessories)
Operating temperature
-40 °C to +125 °C
IP Rating
IP66, IP67, IP69
