Why Choose the ILME MKIAP20 Angled Housing?

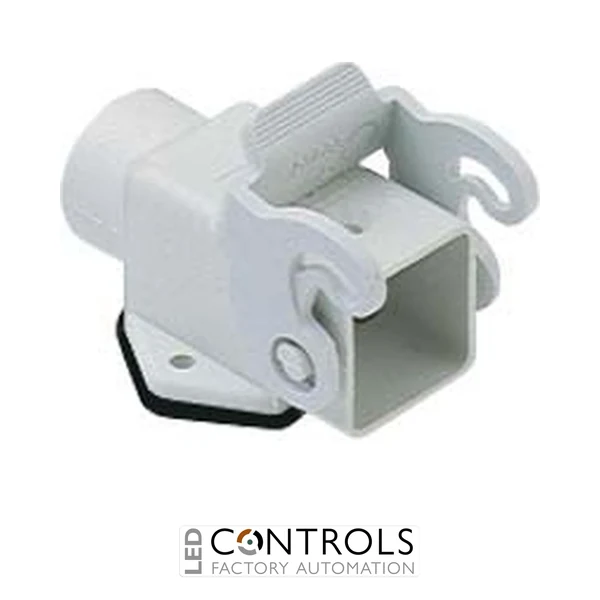

The ILME MKIAP20 is a compact angled thermoplastic connector housing designed for rectangular multipole connections in industrial machinery, automation and control equipment. Its lightweight plastic construction, single locking lever and M20 cable entry provide a practical enclosure solution where compact dimensions and convenient cable routing are important.
Designed around the compact size 21.21 enclosure format, the MKIAP20 provides mechanical protection for compatible ILME connector inserts while requiring minimal installation space. The angled configuration directs the incoming cable alongside the mounting surface, helping reduce cable bending and simplify wiring in confined machinery and equipment layouts.
The MKIAP20 is particularly well suited to applications where the low weight and electrical insulation properties of a thermoplastic enclosure are advantageous. When correctly assembled with compatible ILME components and an appropriate M20 cable gland, it provides a secure and maintainable detachable connection for industrial power, control and signal circuits.
Key Advantages
- Compact angled thermoplastic housing for industrial connector applications.
- Size 21.21 enclosure format for compatible ILME compact connector inserts.
- M20 cable entry for straightforward industrial cable installation.
- Angled construction supports convenient cable routing in restricted spaces.
- Lightweight plastic enclosure provides an alternative to metal connector housings.
- Single locking lever enables secure coupling with compatible mating components.
Key Features
- ILME industrial multipole connector housing.
- Angled housing configuration.
- Size 21.21 enclosure format.
- M20 cable entry.
- Single locking lever.
- Thermoplastic enclosure construction.
- Compact and lightweight design.
- Designed for compatible ILME rectangular connector inserts and mating components.
Compact Angled Housing for Industrial Connections
Angled connector housings are particularly useful where available installation depth is limited or where a cable needs to run close to the surface of a machine or enclosure. The ILME MKIAP20 provides this cable-routing flexibility in the compact size 21.21 format, helping designers create neat and accessible detachable electrical connections.
Its thermoplastic construction provides a lightweight enclosure around the compatible connector insert, while the locking lever maintains secure mechanical coupling with the corresponding mating component. The M20 entry accommodates a suitable cable gland, allowing the completed assembly to provide strain relief and environmental protection appropriate to the installation.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Compact motors, sensors and actuators.
- Robotics and material handling equipment.
- Machine wiring and electrical control equipment.
- Industrial power, control and signal connections.
