Why Choose the ILME MKIAPN20 Angled Housing?

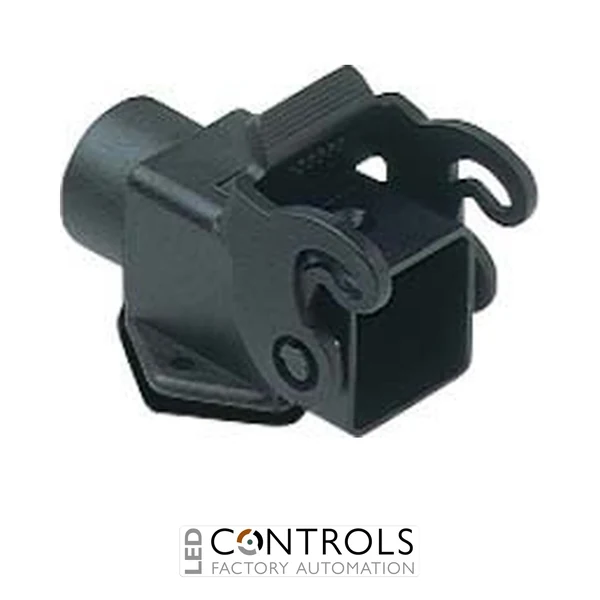

The ILME MKIAPN20 is a compact black angled bulkhead mounting housing designed for heavy-duty rectangular connector systems used in industrial machinery, automation and control applications. Part of the ILME CK series, it combines lightweight plastic enclosure construction with a single locking lever and M20 cable entry for practical, space-efficient industrial connectivity.
Designed around the compact size 21.21 connector format, the MKIAPN20 provides mechanical protection for compatible ILME inserts while maintaining a small installation footprint. Its angled bulkhead configuration directs the cable alongside the mounting surface, helping simplify cable routing where installation depth or available machinery space is restricted.
The MKIAPN20 features a distinctive black finish and an M20 cable entry for connection through an appropriate cable gland. The enclosure provides IP44 protection in its standard configuration and can achieve IP66 / IP67 / IP69 protection with the ILME CKR 65 sealing kit when correctly assembled with compatible components.
Key Advantages
- Compact angled bulkhead housing for industrial connector applications.
- Size 21.21 enclosure format for compatible ILME compact connector inserts.
- M20 cable entry for straightforward industrial cable installation.
- Angled configuration supports convenient cable routing in space-restricted equipment.
- Lightweight plastic enclosure construction with a black finish.
- Can achieve IP66 / IP67 / IP69 protection with the CKR 65 kit when correctly assembled.
Key Features
- ILME CK series.
- Angled bulkhead mounting housing.
- Size 21.21 enclosure format.
- M20 cable entry.
- One locking lever.
- Black plastic enclosure.
- Designed for cable and panel mounting.
- Compact configuration for space-conscious machinery and equipment.
- Compatible with appropriate ILME size 21.21 rectangular connector inserts.
Compact Angled Housing for Industrial Connections
Angled connector housings are particularly useful where installation depth is limited or where incoming cabling needs to remain close to the surface of a machine or panel. The ILME MKIAPN20 combines this practical angled configuration with the compact size 21.21 format, providing a convenient detachable connector interface without requiring the cable to project directly away from the equipment.
The M20 cable entry accepts an appropriate cable gland, while the single locking lever provides secure mechanical coupling with the corresponding mating connector. For applications requiring greater resistance to dust and water ingress, the correctly assembled connector can achieve IP66, IP67 and IP69 protection when equipped with the compatible ILME CKR 65 sealing kit.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Compact motor and actuator connections.
- Robotics and material handling equipment.
- Machine wiring and electrical control equipment.
- Industrial power, control and signal connections.
