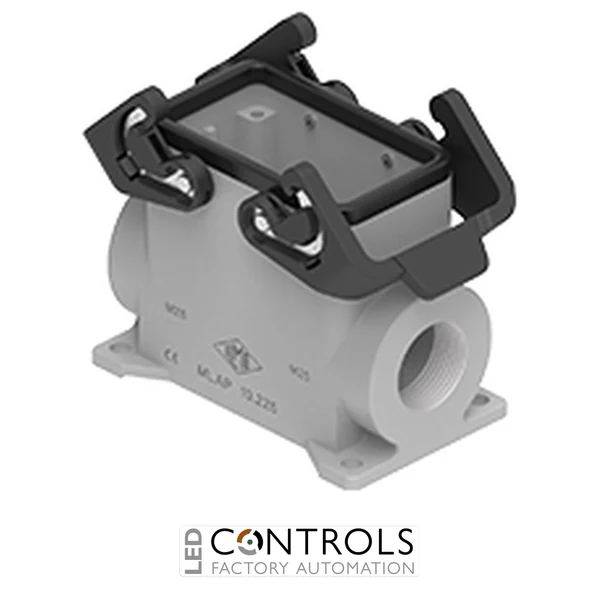

Why Choose the ILME MLAP10.225 Surface Mounting Housing?
The ILME MLAP10.225 is a robust high-construction surface mounting housing designed for heavy-duty rectangular connector systems in industrial machinery, automation and control applications. Built around the size 57.27 enclosure format, it combines a durable aluminium body with two IL-BRID locking levers for secure and convenient connector coupling.
The MLAP10.225 features two M25 side cable entries, providing flexible routing for applications requiring two separate cable glands or cable entry points. Its high-construction design provides additional internal space compared with standard-height housings, making it particularly useful where cable termination, conductor routing or larger cable assemblies require increased enclosure volume.
When correctly mated and locked with compatible connector components, the enclosure supports demanding industrial installations with IP65 / IP66 / IP69 protection. The combination of aluminium construction, twin IL-BRID levers and dual M25 entries makes the MLAP10.225 a versatile housing for reliable and maintainable multipole electrical connections.
Key Advantages
- High-construction surface mounting housing provides additional internal space for cable termination and routing.
- Two M25 side cable entries support flexible industrial cabling arrangements.
- Two IL-BRID levers provide secure and convenient connector locking.
- Robust aluminium enclosure for demanding industrial applications.
- Size 57.27 format supports a broad range of compatible ILME multipole inserts.
- Supports IP65 / IP66 / IP69 protection when correctly assembled with suitable components.
Key Features
- ILME ML series enclosure.
- Surface mounting housing.
- Size 57.27 enclosure format.
- High construction.
- Two M25 side cable entries.
- Two IL-BRID locking levers.
- Durable aluminium construction.
- Designed for compatible ILME rectangular multipole connector inserts.
- Suitable for industrial power, control and signal connections.
High-Construction Housing for Flexible Industrial Connections
High-construction connector housings provide additional enclosure depth for installations where conductor routing, cable termination or the selected connector insert requires more space than a standard housing can conveniently provide. The ILME MLAP10.225 combines this increased internal capacity with two side-mounted M25 cable entries, enabling flexible routing of separate cables into a single multipole connector assembly.
The two IL-BRID locking levers provide a secure mating interface while supporting convenient connection and disconnection during installation and maintenance. When the housing is correctly mated, locked and equipped with appropriate cable glands or fittings, the completed connector assembly can provide a high level of resistance to dust and water ingress for demanding industrial environments.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Machine tools and manufacturing systems.
- Robotics and material handling equipment.
- Motor, drive and actuator connections.
- Industrial power, control and signal distribution.
