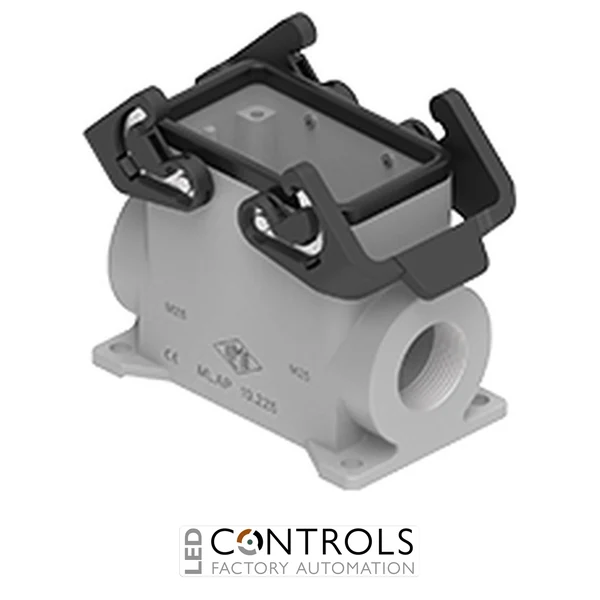

MLAP 10.232 ILME Surf hsg 2 IL-brid levers M32 x 2 Size 57.27 High Con
ILME MLAP10.232 IL-BRID high-construction aluminium surface mounting housing with two locking levers, size 57.27 enclosure format and two M32 side cable entries for heavy-duty industrial multipole connections.
SKU:MLAP10.232Alt SKU:MLAP10.232MPN:MLAP 10.232
Price
List Price£27.60ex VAT
Your Price (ex VAT)
£27.60
Manufacturer Lead TimePlease contact us for a delivery time before you order
Get the best trade pricesTrade exclusive
Create a trade account to unlock exclusive pricing, special offers and more.
Why Choose the ILME MLAP10.232 Surface Mounting Housing?
The ILME MLAP10.232 is a robust high-construction surface mounting housing from the ILME IL-BRID series, designed for heavy-duty rectangular connector systems in industrial machinery, automation and control applications. Built around the size 57.27 enclosure format, it combines durable aluminium construction with two IL-BRID locking levers for secure and convenient connector coupling.
The MLAP10.232 features two M32 side cable entries, providing flexible routing for installations requiring two separate cable glands or cable entry points. Its high-construction design provides additional enclosure space for conductor routing and cable termination, making it particularly useful for larger cables and more demanding connector assemblies.
The housing provides IP65 / IP66 / IP69 protection when correctly assembled, mated and locked with compatible components. With an operating temperature range from -40 °C to +125 °C, two stainless steel reinforced polyamide IL-BRID levers and a rubber gasket, the MLAP10.232 is engineered for dependable service across demanding industrial environments.
Key Advantages
High-construction surface mounting housing provides additional space for cable termination and conductor routing.
Two M32 side cable entries support flexible dual-cable installations.
Two IL-BRID locking levers provide secure and convenient connector coupling.
Robust aluminium enclosure construction for demanding industrial applications.
Size 57.27 format supports a wide range of compatible ILME multipole inserts.
IP65 / IP66 / IP69 protection when correctly assembled with compatible components.
Key Features
ILME IL-BRID series.
Surface mounting housing.
Size 57.27 enclosure format.
High construction.
Two M32 side cable entries.
Two IL-BRID locking levers.
Lever construction uses polyamide with a stainless steel core.
Rubber gasket.
RAL 7040 grey finish.
Operating temperature range from -40 °C to +125 °C.
RoHS compliant and manufactured without declared REACH SVHC substances.
High-Construction Housing for Flexible Industrial Connections
High-construction connector housings provide increased enclosure space for installations where cable termination, conductor routing or the selected multipole insert requires additional room. The ILME MLAP10.232 combines this increased capacity with two M32 side entries, allowing two suitably sized cable glands or fittings to be incorporated into a single heavy-duty connector assembly.
The IL-BRID closing system uses polyamide levers reinforced with stainless steel cores to provide secure mechanical locking while supporting convenient connection and disconnection during installation and maintenance. When the complete enclosure is correctly fitted with suitable cable glands, mated and locked, the MLAP10.232 provides IP65, IP66 and IP69 protection for demanding industrial environments.
Typical Applications
Industrial machinery and production equipment.
Factory automation and control systems.
Machine tools and manufacturing systems.
Robotics and material handling equipment.
Motor, drive and actuator connections.
Industrial power, control and signal distribution.
Technical Specifications
Tick the specs you need, then view products that match.
Cable Entry
M32
Device Type
Accessory
Frame Size
57.27
Application
High-conductivity
HS Code
85389099
Country of Manufacture
Italy
Manufacturer
ILME
Series
IL-BRID
Model
MLAP 10.232
SKU
MLAP10.232
Product type
Surface mounting housing
Enclosure size
57.27
Construction
High
Closing type
2 IL-BRID levers
Lever material
Polyamide (PA) with stainless steel core
Cable entries
2
Cable entry size
M32 × 2
Cable entry orientation
Side
Enclosure material
Aluminium
Gasket material
Rubber
Colour
RAL 7040 grey
Protection rating
IP65 / IP66 / IP69
Operating temperature
-40 °C to +125 °C
Weight
293 g
Certifications
DNV, BV
UL classification
ECBT2
cUL classification
ECBT8
RoHS conformity
Compliant
REACH SVHC substances
No
EAN
8015747287579
eCl@ss 8.1
27440202
ETIM 7.0
EC000437
IP Rating
IP65, IP66, IP69
Frequently Asked Questions
What is the ILME MLAP10.232 used for?
The MLAP10.232 is a high-construction surface mounting housing designed for compatible ILME size 57.27 multipole connector inserts used in industrial machinery, automation and electrical control systems.
What cable entries does the MLAP10.232 have?
The housing features two M32 side cable entries, allowing two suitable M32 cable glands or fittings to be installed for flexible cable routing.
What are the IL-BRID levers on the MLAP10.232?
The MLAP10.232 has two IL-BRID locking levers manufactured from polyamide with stainless steel cores, providing secure mechanical locking with compatible ILME mating components.
What does high construction mean on the MLAP10.232?
High construction provides increased enclosure space compared with lower-profile housing configurations, giving additional room for cable termination, conductor routing and compatible connector assemblies.
What protection rating does the ILME MLAP10.232 provide?
The MLAP10.232 is specified for IP65 / IP66 / IP69 protection when the complete enclosure is correctly assembled with suitable cable glands or fittings, mated with compatible components and securely locked using its closing levers.
Trusted Industrial Connectivity from ILME
ILME IL-BRID heavy-duty connector enclosures combine robust construction, secure locking and flexible cable-entry configurations to provide machine builders, panel builders and automation engineers with dependable and maintainable industrial electrical connections.
