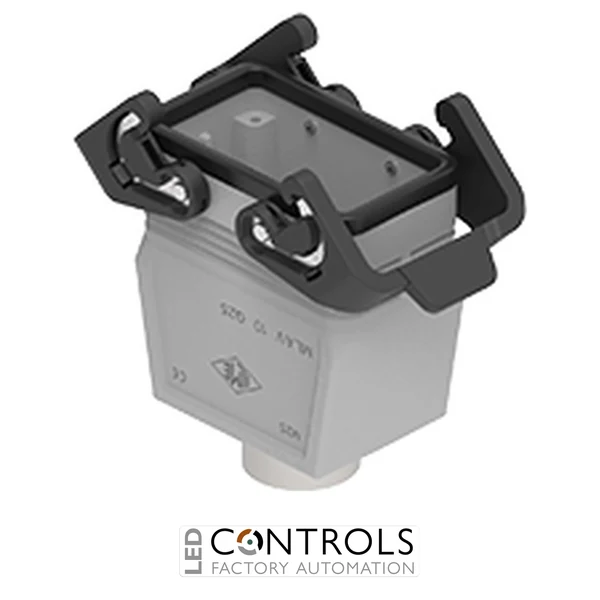

MLAV 10 G25 ILME Hood 2 IL-b levers+gasket t/entry M25 Size 57.27 High Con
ILME MLAV10G25 is a size 57.27 High Construction aluminium connector hood with two IL-BRID locking levers, gasket, M25 top cable entry with metal adapter and IP65, IP66 and IP69 protection for heavy-duty industrial connections.
SKU:MLAV10G25Alt SKU:MLAV10G25MPN:MLAV 10 G25
Price
List Price£34.11ex VAT
Your Price (ex VAT)
£34.11
Manufacturer Lead TimePlease contact us for a delivery time before you order
Get the best trade pricesTrade exclusive
Create a trade account to unlock exclusive pricing, special offers and more.
Why Choose the ILME MLAV10G25 High Construction Hood?
The ILME MLAV10G25 is a robust High Construction industrial connector hood designed for heavy-duty multipole connections in machinery, automation and electrical equipment. Part of the ILME IL-BRID enclosure series, it combines a size 57.27 connector interface with two locking levers, a gasket and an elevated enclosure profile for dependable industrial connectivity.
The MLAV10G25 features two IL-BRID locking levers that provide secure coupling with a compatible mating enclosure. Its M25 top cable entry with metal adapter provides a straightforward cable approach, while the integrated gasket supports effective sealing of the connector interface when correctly assembled.
Designed for demanding environments, the MLAV10G25 provides IP65, IP66 and IP69 protection when properly assembled with compatible components. Its High Construction design provides increased internal space for cable routing and termination, while an operating temperature range of -40 °C to +125 °C makes it suitable for a wide variety of industrial installations.
Key Advantages
Robust High Construction hood for heavy-duty industrial connectors.
Size 57.27 interface supports a wide selection of compatible ILME inserts.
M25 top cable entry with metal adapter for practical cable installation.
Two IL-BRID locking levers provide secure connector coupling.
IP65 / IP66 / IP69 protection for demanding industrial environments.
Key Features
ILME IL-BRID enclosure series.
High Construction connector hood.
Size 57.27 connector interface.
M25 top cable entry.
Supplied with metal cable-entry adapter.
Equipped with two IL-BRID locking levers.
Integrated gasket for the mating interface.
IP65 / IP66 / IP69 degree of protection.
Operating temperature range of -40 °C to +125 °C.
Mechanical life of at least 500 mating cycles.
Reliable IL-BRID Connectivity for Industrial Machinery
Heavy-duty multipole connector systems provide a convenient detachable interface for power, control and signal circuits on industrial equipment. The ILME MLAV10G25 protects compatible size 57.27 inserts and their cable terminations while its two IL-BRID levers provide secure mechanical coupling to the mating connector enclosure.
The High Construction format provides additional internal space for wiring compared with standard-height hoods, helping accommodate cable routing and termination requirements. Combined with its M25 top entry, metal adapter, gasket and high ingress protection ratings, the MLAV10G25 provides a dependable connection solution for demanding machinery and automation installations.
Typical Applications
Industrial machinery and machine building.
Factory automation and production equipment.
Packaging and processing machinery.
Material handling and conveyor systems.
Control equipment and machine wiring.
Industrial power, control and signal connections.
Technical Specifications
Tick the specs you need, then view products that match.
Cable Entry
Top entry M25
Frame Size
57.27
Application
High-conductivity
Housing Material
Metal (die-cast aluminium)
Device Type
Hood
HS Code
85389099
Country of Manufacture
Italy
Manufacturer
ILME
Series
IL-BRID
Model
MLAV 10 G25
Part number
MLAV10G25
Product type
High Construction industrial connector hood
Housing size
57.27
Cable entry
M25
Cable entry position
Top entry
Cable entry configuration
With metal adapter
Closing system
2 IL-BRID levers
Gasket
Included
Housing material
Aluminium
Construction type
High Construction
Protection rating
IP65 / IP66 / IP69
UL enclosure rating
Type 12 / 4 / 4X
Operating temperature range
-40 °C to +125 °C
Mechanical life
≥500 mating cycles
Approximate overall dimensions (W × D × H)
118 × 58 × 107 mm
IP Rating
IP65, IP66, IP69
Frequently Asked Questions
What is the ILME MLAV10G25 used for?
The MLAV10G25 is a High Construction industrial connector hood designed to protect compatible ILME size 57.27 multipole inserts and cable terminations in machinery and automation applications.
What cable entry does the MLAV10G25 have?
The MLAV10G25 has an M25 top cable entry with a metal adapter for connection of a suitable industrial cable gland.
How many locking levers does the MLAV10G25 have?
The hood is equipped with two IL-BRID locking levers for secure coupling with a compatible mating enclosure.
What IP protection does the MLAV10G25 provide?
The MLAV10G25 is designed to provide IP65, IP66 and IP69 protection when correctly assembled with compatible connector components.
What size connector inserts are compatible with the MLAV10G25?
The MLAV10G25 uses the ILME size 57.27 interface and is designed for compatible ILME inserts and modular frames of this enclosure size.
Trusted by Industrial Connector Professionals
ILME IL-BRID heavy-duty connector enclosures provide machine builders, panel builders and automation engineers with robust detachable connection solutions, combining secure lever locking, high ingress protection and durable construction for demanding industrial equipment.
Cable Entry
Top entry M25
Frame Size
57.27
Application
High-conductivity
Housing Material
Metal (die-cast aluminium)
Device Type
Hood
HS Code
85389099
Country of Manufacture
Italy
Manufacturer
ILME
Series
IL-BRID
Model
MLAV 10 G25
Part number
MLAV10G25
Product type
High Construction industrial connector hood
Housing size
57.27
Cable entry
M25
Cable entry position
Top entry
Cable entry configuration
With metal adapter
Closing system
2 IL-BRID levers
Gasket
Included
Housing material
Aluminium
Construction type
High Construction
Protection rating
IP65 / IP66 / IP69
UL enclosure rating
Type 12 / 4 / 4X
Operating temperature range
-40 °C to +125 °C
Mechanical life
≥500 mating cycles
Approximate overall dimensions (W × D × H)
118 × 58 × 107 mm
IP Rating
IP65, IP66, IP69
