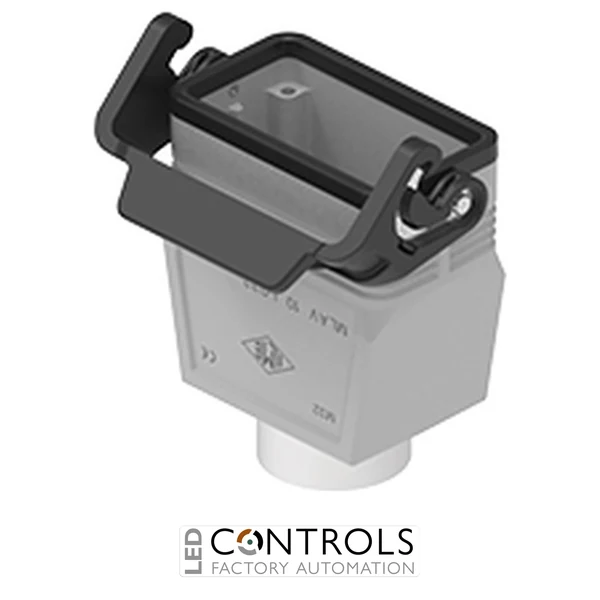

Why Choose the ILME MLAV10LG32 Hood?
The ILME MLAV10LG32 is a robust high-construction industrial connector hood from the ILME IL-BRID enclosure range, designed for heavy-duty rectangular multipole connections in machinery, automation and control applications. Built around the size 57.27 enclosure format, it combines durable aluminium construction with one IL-BRID locking lever and gasket for secure connector coupling.
The MLAV10LG32 features a top cable entry with metal M32 adapter, providing a straight cable-routing arrangement for compatible industrial cable glands. Its high-construction design provides increased internal space for conductor routing and cable termination, making it particularly useful where larger cables or connector configurations require additional enclosure volume.
Designed for demanding industrial service, the MLAV10LG32 provides IP65 / IP66 / IP69 protection when correctly assembled with compatible components. It is also specified to UL 50 / UL 50E Type 12 / 4 / 4X, has an operating temperature range from -40 °C to +125 °C and is rated for at least 500 mechanical mating cycles.
Key Advantages
- High-construction hood provides additional space for cable termination and conductor routing.
- Top-entry M32 metal adapter supports secure straight cable routing.
- Single IL-BRID locking lever provides secure and convenient connector coupling.
- Gasket-equipped design supports reliable environmental sealing.
- Robust aluminium enclosure for demanding heavy-duty industrial applications.
- IP65 / IP66 / IP69 protection when correctly assembled with compatible components.
Key Features
- ILME IL-BRID series.
- Industrial multipole connector hood.
- Size 57.27 enclosure format.
- High construction.
- One IL-BRID locking lever.
- Gasket included.
- Top cable entry with metal M32 adapter.
- Durable aluminium construction.
- Operating temperature range from -40 °C to +125 °C.
- Mechanical life of at least 500 cycles.
High-Construction Protection with IL-BRID Locking
High-construction connector hoods provide increased internal space where cable termination, conductor routing or the selected multipole insert requires additional room. The ILME MLAV10LG32 combines this increased enclosure capacity with a straight M32 top entry and metal adapter, making it a practical solution for larger industrial cabling while retaining the compact size 57.27 connector interface.
The IL-BRID single-lever closing system provides secure mechanical locking while allowing convenient connection and disconnection during installation and maintenance. Together with the fitted gasket and correctly selected cable gland, the enclosure supports IP65, IP66 and IP69 protection for demanding industrial environments.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Machine tools and manufacturing systems.
- Robotics and material handling equipment.
- Motor, drive and actuator connections.
- Industrial power, control and signal distribution.
