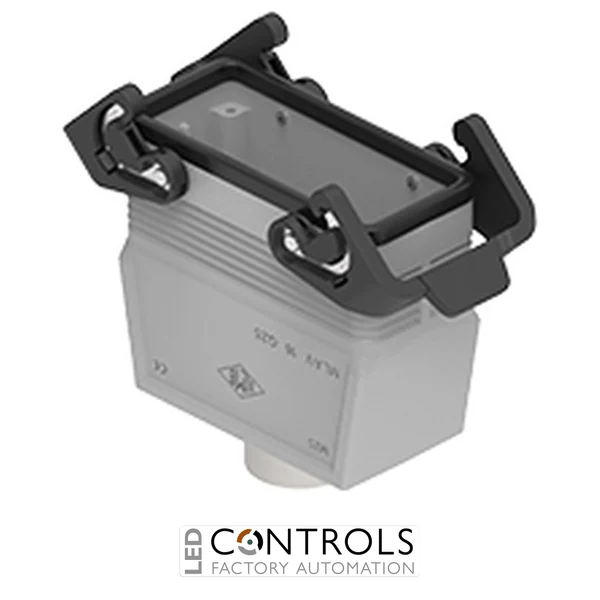

Why Choose the ILME MLAV16G32 Hood?
The ILME MLAV16G32 is a robust high-construction industrial connector hood from the ILME IL-BRID series, designed for heavy-duty rectangular multipole connections in machinery, automation and control applications. Built around the size 77.27 enclosure format, it combines durable aluminium construction with two IL-BRID locking levers and a gasket for secure connector coupling and environmental protection.
The MLAV16G32 features a top cable entry with M32 adapter, providing a straight cable-routing arrangement for use with an appropriate complete cable gland. Its high-construction design provides increased internal space for conductor routing and cable termination, making it particularly useful where larger cables, modular inserts or complex connector configurations require additional enclosure volume.
Designed for demanding industrial service, the MLAV16G32 provides IP65 / IP66 / IP69 protection when correctly assembled with compatible components. The IL-BRID levers combine polyamide with stainless steel cores, while the enclosure is specified for an operating temperature range from -40 °C to +125 °C, making it suitable for a broad range of heavy-duty industrial environments.
Key Advantages
- High-construction hood provides additional internal space for cable termination and conductor routing.
- Top-entry M32 adapter supports straight and secure industrial cable routing.
- Two IL-BRID locking levers provide secure and convenient connector coupling.
- Rubber gasket supports reliable environmental sealing when the connector is correctly assembled.
- Robust aluminium enclosure construction for demanding industrial applications.
- IP65 / IP66 / IP69 protection when correctly assembled with compatible components.
Key Features
- ILME IL-BRID series.
- Industrial multipole connector hood.
- Size 77.27 enclosure format.
- High construction.
- Two IL-BRID locking levers.
- Lever construction combines polyamide (PA) with stainless steel cores.
- Rubber gasket.
- Top cable entry with M32 adapter.
- Durable aluminium enclosure.
- RAL 7040 grey finish.
- Operating temperature range from -40 °C to +125 °C.
High-Construction Protection with IL-BRID Locking
High-construction connector hoods provide additional internal space where cable termination, conductor routing or the selected multipole insert requires greater enclosure volume. The ILME MLAV16G32 combines this increased capacity with a straight M32 top cable entry and adapter, providing a practical solution for substantial industrial cabling while retaining the established size 77.27 connector interface.
The two IL-BRID locking levers combine polyamide bodies with stainless steel cores to provide secure mechanical locking and convenient connection or disconnection during installation and maintenance. Together with the rubber gasket, a suitable complete cable gland and compatible mating components, the MLAV16G32 supports IP65, IP66 and IP69 protection for demanding industrial installations.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Machine tools and manufacturing systems.
- Robotics and material handling equipment.
- Motor, drive and actuator connections.
- Industrial power, control and signal distribution.
