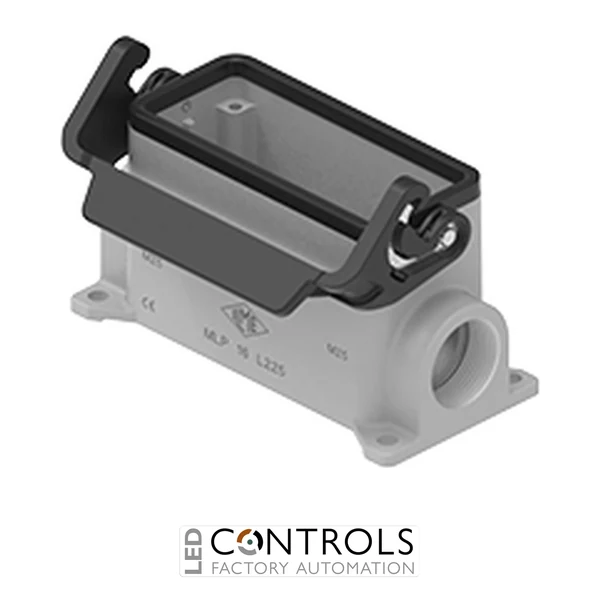

Why Choose the ILME MLP16L25 IL-BRID Surface Mounting Housing?
The ILME MLP16L25 is a robust surface mounting connector housing designed for reliable industrial electrical connections in machinery, automation and control systems. As part of the ILME IL-BRID series, this size 77.27 housing combines dependable environmental protection with a practical single-lever locking system for secure and convenient connector assembly.
The housing features ILME's IL-BRID lever system, incorporating a polyamide lever with a stainless steel core to provide secure mechanical locking. A rubber gasket helps maintain the enclosure seal when the housing is correctly mated and locked, supporting demanding industrial installations where protection from dust, water and harsh environmental conditions is important.
With a single M25 cable entry, size 77.27 format and protection ratings up to IP65 / IP66 / IP69, the MLP16L25 provides a durable connection point for compatible ILME inserts, hoods and industrial connector components. Its surface mounting design is suitable for installation on machinery, electrical enclosures, control cabinets and other fixed equipment.
Key Advantages
- Durable surface mounting housing for industrial multipole connectors.
- IL-BRID single-lever locking system for secure and convenient connector engagement.
- M25 cable entry for straightforward cable routing and gland installation.
- IP65 / IP66 / IP69 protection when correctly mated and locked with compatible components.
- Wide -40 °C to +125 °C operating temperature range for demanding environments.
- Size 77.27 format supports a broad range of compatible ILME connector inserts.
Key Features
- ILME IL-BRID series.
- Size 77.27 surface mounting housing.
- One IL-BRID closing lever.
- Single M25 cable entry.
- IP65 / IP66 / IP69 degree of protection.
- Lever manufactured from polyamide with a stainless steel core.
- Integrated rubber gasket for environmental sealing.
- RAL 7040 grey finish.
- Designed for an operating temperature range of -40 °C to +125 °C.
- RoHS compliant construction.
Reliable Protection for Industrial Connections
Industrial connector housings protect electrical inserts and connection interfaces from mechanical and environmental exposure while providing a secure method of joining compatible connector assemblies. The ILME MLP16L25 is designed for fixed surface mounting and provides a dependable interface between compatible ILME inserts, hoods and cable assemblies.
The IL-BRID locking system combines a lightweight polyamide lever with a stainless steel reinforcing core. When the connector is correctly mated and locked, the housing provides high levels of ingress protection, making it well suited to machinery and industrial installations exposed to dust, moisture, wash-down procedures and challenging operating conditions.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Electrical control cabinets and enclosures.
- Robotics and automated manufacturing equipment.
- Material handling and conveyor systems.
- Industrial power, control and signal connections.
