Why Choose the Ilme MZ7PW15L225 W-TYPE Surface Mounting Housing?

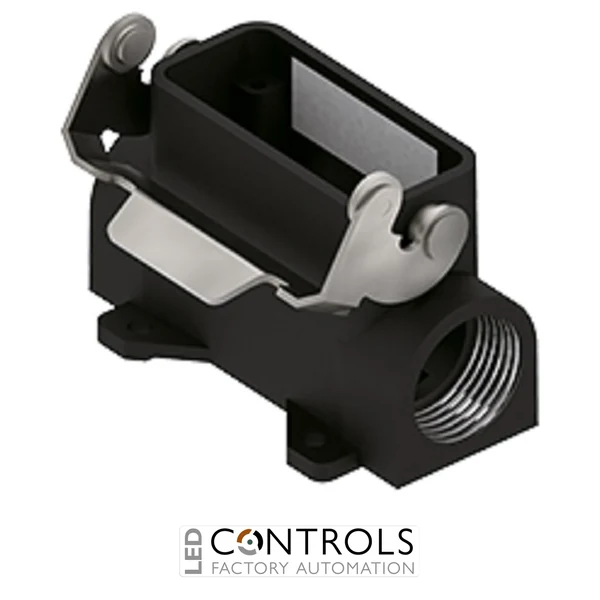

The Ilme MZ7PW15L225 is a robust W-TYPE surface mounting housing specifically designed for heavy-duty multipole connector installations in aggressive industrial environments. Featuring 1 stainless steel lever, 2 × M25 cable entries and Ilme size 49.16 construction, it provides a compact and dependable fixed enclosure for compatible connector inserts.
Ilme's W-TYPE enclosure range is intended for applications where connector components may be exposed to particularly demanding environmental conditions. The MZ7PW15L225 combines its specialised W-TYPE construction with a stainless steel locking lever, providing secure mechanical engagement with a compatible peg-equipped hood or cover while retaining straightforward access for installation and servicing.
With IP66 and IP67 protection when correctly assembled, plus an operating temperature range of -40 °C to +125 °C, the MZ7PW15L225 is well suited to demanding machinery, automation and process installations. Its dual M25 entries also provide flexible routing where two separate cable entry points are required within a compact size 49.16 connector footprint.
Key Advantages
- Specialised W-TYPE construction for aggressive industrial environments.
- 1 stainless steel lever provides robust and secure connector locking.
- 2 × M25 cable entries offer flexible cable and gland routing.
- Compact Ilme size 49.16 format for space-conscious installations.
- IP66 / IP67 protection when correctly assembled with compatible components.
- Wide -40 °C to +125 °C operating temperature range for demanding industrial applications.
Key Features
- Ilme W-TYPE series connector enclosure.
- Surface mounting housing configuration.
- Designed for aggressive environments.
- Single stainless steel lever.
- 2 × M25 cable entries.
- Size 49.16.
- IP66 / IP67 ingress protection when correctly assembled.
- -40 °C to +125 °C operating temperature range.
- Heavy-duty aluminium enclosure construction.
- Designed for compatible Ilme industrial multipole connector inserts and mating components.
Reliable Connectivity for Aggressive Industrial Environments
Industrial connector housings provide mechanical protection for inserts and conductor terminations while creating a secure mating interface for detachable power, control and signal connections. In aggressive environments, the enclosure must also withstand demanding conditions while maintaining effective sealing and reliable mechanical locking throughout the equipment's operating life.
The Ilme MZ7PW15L225 combines W-TYPE construction, a stainless steel lever and dual M25 cable entries within the compact 49.16 format. Its IP66/IP67 protection and broad operating temperature range make it particularly suitable for machinery and industrial installations where conventional connector housings may face challenging environmental exposure.
Typical Applications
- Industrial machinery operating in aggressive environments.
- Factory automation and production equipment.
- Process and manufacturing systems.
- Electrical control cabinets and machine interfaces.
- Detachable industrial power, control and signal connections.
- Equipment requiring dual M25 cable entry and high ingress protection.
