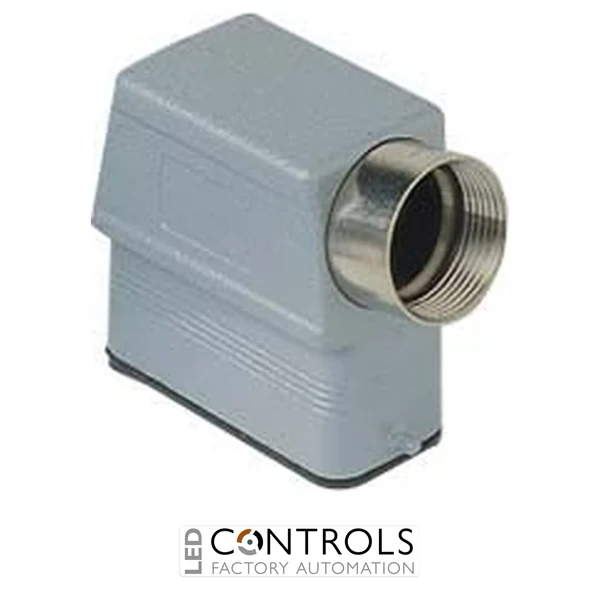

Why Choose the ILME MZAO15L25 High Construction Hood?
The ILME MZAO15L25 is a robust IL-BRID heavy-duty connector hood designed for industrial multipole connections in machinery, automation and electrical equipment. Built around the compact ILME size 49.16 interface, this high-construction hood provides additional internal space while maintaining a compact connector footprint.
The MZAO15L25 features two locking pegs for secure coupling with a compatible IL-BRID lever housing. Its M25 side cable entry with adapter provides a convenient horizontal cable approach, making it particularly suitable where vertical clearance is restricted or cabling needs to run alongside machinery and equipment.
Manufactured from aluminium, the MZAO15L25 is engineered for demanding industrial environments and provides IP66, IP67 and IP69 protection when correctly assembled with compatible ILME components. The combination of high construction, side entry and secure locking makes it a versatile enclosure for industrial power, control and signal connections.
Key Advantages
- High-construction IL-BRID connector hood for demanding industrial applications.
- Size 49.16 interface for compatible ILME multipole connector inserts.
- M25 side cable entry with adapter for practical horizontal cable routing.
- Two locking pegs provide secure coupling with compatible lever-equipped housings.
- Durable aluminium construction for industrial machinery and equipment.
- IP66 / IP67 / IP69 protection when correctly assembled with compatible components.
Key Features
- ILME IL-BRID series.
- High-construction connector hood.
- Size 49.16 connector interface.
- M25 side cable entry.
- Cable entry supplied with adapter.
- Equipped with two locking pegs.
- Durable aluminium enclosure.
- IP66 / IP67 / IP69 degree of protection when correctly assembled.
- Designed for compatible ILME heavy-duty multipole inserts.
- Suitable for industrial power, control and signal connector systems.
High-Construction Side-Entry Connectivity
Heavy-duty multipole connector systems allow multiple power, control and signal circuits to be combined within a single detachable electrical interface. The ILME MZAO15L25 forms the cable-side enclosure of a compatible connector assembly, protecting the insert and termination area while its high-construction profile provides additional space for cable routing.
The M25 side entry is particularly useful where cabling must approach the connector horizontally or where clearance above the connector is limited. Two locking pegs engage with the locking mechanism of a compatible ILME housing, providing a secure mechanical connection suitable for machinery and other demanding industrial equipment.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Packaging and processing machinery.
- Material handling and conveyor systems.
- Control and instrumentation equipment.
- Industrial power, control and signal connections.
