Why Choose the ILME MZAP25L225 Surface Mounting Housing?

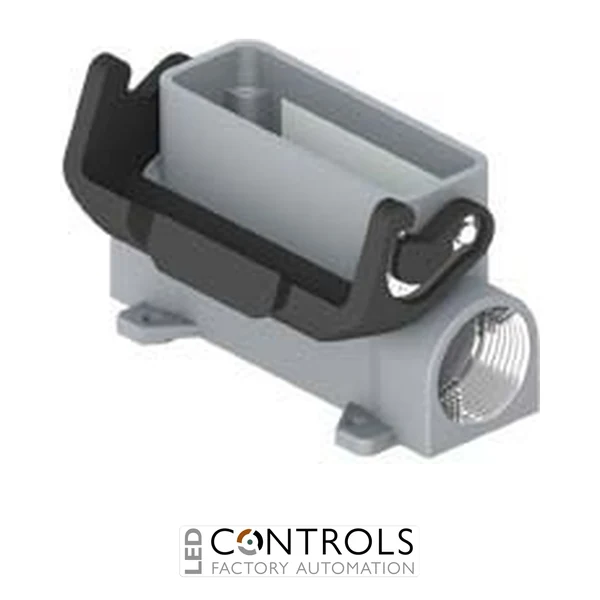

The ILME MZAP25L225 is a robust high-construction surface mounting industrial connector housing designed for dependable multipole connections in machinery, automation and industrial electrical systems. Part of the ILME IL-BRID series, this size 66.16 housing features a single locking lever and two M25 cable entries, providing a practical enclosure for compatible ILME inserts and mating connector components.
The IL-BRID locking system combines a polyamide lever with a stainless steel core, providing secure mechanical engagement while supporting convenient connection and disconnection during installation and maintenance. A rubber gasket helps maintain environmental sealing when the connector assembly is correctly mated and locked.
With its high-construction size 66.16 format and 2 × M25 cable entries, the MZAP25L225 provides additional internal space and flexible cable routing for industrial connector assemblies. The enclosure provides IP65 / IP66 / IP69 protection when correctly assembled with compatible components, making it suitable for demanding applications exposed to dust, moisture and industrial operating conditions.
Key Advantages
- Robust high-construction surface mounting housing for industrial multipole connectors.
- Single IL-BRID locking lever provides secure and convenient connector engagement.
- 2 × M25 cable entries provide flexible cable routing into the enclosure.
- Size 66.16 format supports compatible ILME inserts and mating components.
- IP65 / IP66 / IP69 protection when correctly assembled and mated.
- High-construction design provides additional enclosure space for industrial connector installations.
Key Features
- ILME IL-BRID series.
- Size 66.16 high-construction housing.
- One IL-BRID locking lever.
- 2 × M25 cable entries.
- IP65 / IP66 / IP69 degree of protection.
- Lever manufactured from polyamide with a stainless steel core.
- Integrated rubber gasket for environmental sealing.
- RAL 7040 grey finish.
- RoHS compliant construction.
- Designed for fixed surface mounting on machinery and electrical enclosures.
Reliable Protection for Industrial Connections
Industrial connector housings provide mechanical and environmental protection for electrical inserts while creating a secure interface between fixed equipment and detachable connector assemblies. The ILME MZAP25L225 is designed for permanent surface mounting and provides a robust enclosure for compatible size 66.16 inserts used for industrial power, control and signal connections.
Its high-construction format provides useful internal space for connector and cable arrangements, while the two M25 entries support flexible cable routing. Combined with the IL-BRID locking mechanism and rubber gasket, the housing provides a dependable solution for machinery and automation systems where secure mating and high ingress protection are required.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Electrical control cabinets and enclosures.
- Robotics and automated manufacturing equipment.
- Material handling and conveyor systems.
- Industrial power, control and signal connections.
