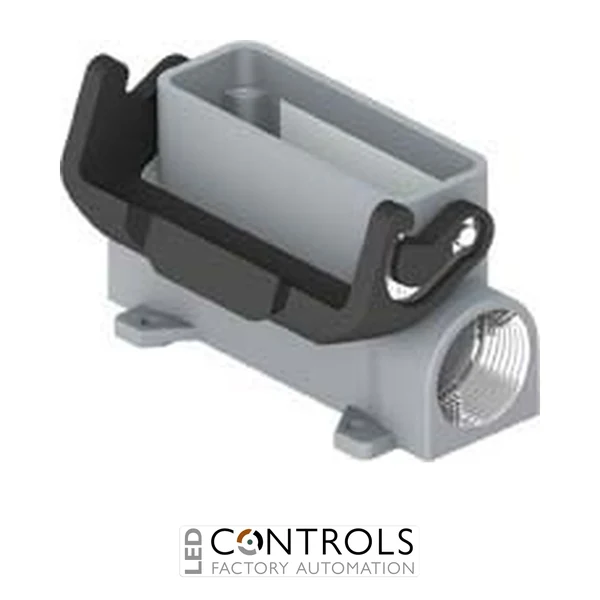

MZAP25L25 Ilme Surface housing 1 IL-Brid lever M25 Size 66.16

MZAP25L25 Ilme Surface housing 1 IL-Brid lever M25 Size 66.16

ILME MZAP25L25 surface mounting housing with single IL bridge lever, M25 cable entry and size 66.16 connector format for industrial applications.

SKU: MZAP25L25Alt SKU: MZAP 25 L25MPN: MZAP25L25
Price
List Price £16.77 ex VAT
Your Price (ex VAT)
£16.77
In stock. Ships today if ordered before 2pm
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £16.77
Trade pricing is personalised to your account

1 in stock (can be backordered)

£16.77

Why Choose the ILME MZAP25L25 Surface Mounting Housing?

The ILME MZAP25L25 is a robust surface mounting housing designed to provide secure protection and reliable installation for industrial rectangular connector systems. Part of the ILME heavy duty connector range, this housing is engineered for automation, machinery and industrial electrical applications requiring dependable connector protection.

Featuring a durable housing construction with a single IL bridge locking lever, the MZAP25L25 provides secure connector retention and straightforward operation. Its surface mounting design allows easy installation on machine panels, control cabinets and industrial equipment.

With a size 66.16 connector format and an M25 cable entry, the MZAP25L25 is designed for compatible ILME inserts where a reliable and protected industrial connection solution is required.

Key Advantages

  • Durable ILME surface mounting housing for industrial connector applications.
  • Size 66.16 housing format for compatible heavy duty inserts.
  • Single IL bridge lever provides secure connector locking.
  • M25 cable entry supports practical cable routing.
  • Designed for demanding automation and machinery environments.
  • Suitable for OEM equipment and industrial control systems.

Key Features

  • ILME heavy duty connector series.
  • Model: MZAP25L25.
  • Surface mounting housing.
  • Size 66.16 connector format.
  • M25 cable entry.
  • Single IL bridge locking lever.
  • Robust industrial housing construction.
  • Compatible with ILME rectangular connector inserts.
  • Designed for industrial electrical connection systems.

Reliable Industrial Connector Protection

Heavy duty connector housings such as the ILME MZAP25L25 provide a secure mechanical interface between electrical equipment and industrial wiring systems. The robust housing and reliable locking mechanism help protect connections against environmental exposure and mechanical stress.

Designed for machine builders and automation engineers, ILME connector solutions provide modular connection systems for power and signal applications. The MZAP25L25 combines practical installation features with dependable industrial protection.

Typical Applications

  • Industrial automation machinery.
  • Machine building and OEM equipment.
  • Control panels and electrical cabinets.
  • Robotics and manufacturing systems.
  • Industrial power and signal connections.
  • Production and processing equipment.

Technical Specifications

Tick the specs you need, then view products that match.

Cable Entry M25
Device Type Housing
Frame Size 66.16
Application High-conductivity
HS Code 85389099
Country of Manufacture Italy
Manufacturer ILME
Series Heavy Duty Connectors
Model MZAP25L25
Product type Surface mounting housing
Connector size 66.16
Cable entry M25
Locking system 1 IL bridge lever
Mounting type Surface mounting
Protection rating IP66 / IP67 / IP69 (with suitable accessories)
Operating temperature -40 °C to +125 °C
IP Rating IP66, IP67, IP69

Frequently Asked Questions

What is the ILME MZAP25L25 used for?

The ILME MZAP25L25 is a surface mounting housing designed to protect and secure compatible ILME heavy duty connector inserts in industrial applications.

What connector size is the ILME MZAP25L25?

The MZAP25L25 is designed for size 66.16 ILME connector inserts.

What cable entry does the MZAP25L25 have?

The housing features an M25 cable entry for suitable cable glands and cable routing systems.

What locking system does the MZAP25L25 use?

The MZAP25L25 uses a single IL bridge lever to provide secure connector retention.

Where is this surface housing typically installed?

The MZAP25L25 is typically installed on industrial machinery, automation equipment and electrical systems requiring protected heavy duty connections.
