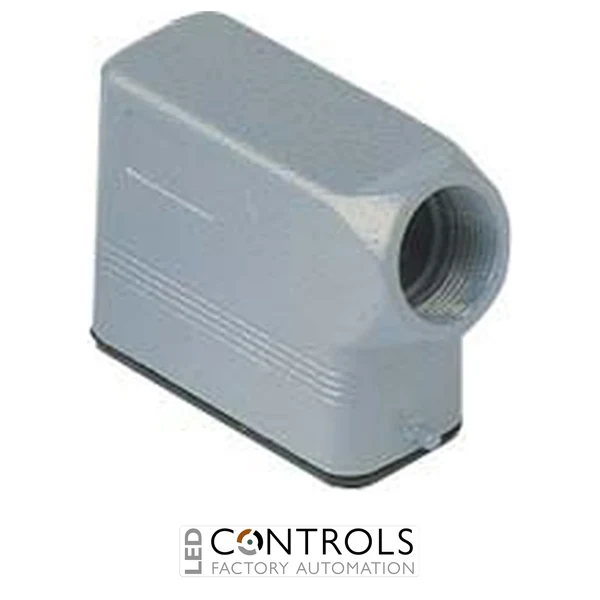

Why Choose the ILME MZO15L20 IL-BRID Hood?
The ILME MZO15L20 is a robust industrial multipole connector hood designed to protect compatible electrical inserts and cable terminations in machinery, automation and industrial control systems. Part of the ILME IL-BRID series, this size 49.16 hood features two locking pegs and an M20 side cable entry for secure, space-efficient industrial connector assemblies.
Manufactured from aluminium, the MZO15L20 combines mechanical strength with a compact enclosure design. Its two locking pegs are designed to engage with a compatible lever-equipped ILME housing, while an NBR gasket contributes to dependable environmental sealing when the complete connector assembly is correctly fitted and locked.
With a single M20 side cable entry and size 49.16 format, the MZO15L20 is particularly useful where horizontal cable routing is preferred or installation height is restricted. The enclosure provides IP66 / IP67 / IP69 protection when correctly assembled with compatible components and is specified for operation from -40 °C to +125 °C.
Key Advantages
- Robust aluminium hood for industrial multipole connectors.
- Two locking pegs provide secure engagement with compatible lever housings.
- M20 side cable entry supports convenient horizontal cable routing.
- IP66 / IP67 / IP69 protection when correctly assembled and mated.
- Wide -40 °C to +125 °C operating temperature range for demanding environments.
- Compact size 49.16 format for compatible ILME inserts and enclosure components.
Key Features
- ILME IL-BRID series.
- Size 49.16 connector hood.
- Two locking pegs.
- Single M20 side cable entry.
- Aluminium construction.
- NBR gasket for environmental sealing.
- IP66 / IP67 / IP69 degree of protection.
- RAL 7040 window grey finish.
- Operating temperature range of -40 °C to +125 °C.
- RoHS compliant and free from declared REACH SVHC substances.
Reliable Protection for Industrial Connections
Industrial connector hoods protect electrical inserts and cable terminations while forming the cable-mounted section of a detachable multipole connection. The ILME MZO15L20 combines aluminium construction with an NBR sealing gasket and high ingress protection, providing a dependable enclosure for compatible power, control and signal connections.
The side-entry configuration allows the cable to approach the connector horizontally, which can simplify installation in machinery and other space-constrained equipment. When its two pegs are securely engaged with a compatible locking-lever housing, the MZO15L20 forms part of a robust industrial connector assembly designed for repeated connection, maintenance and dependable service.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Electrical control cabinets and enclosures.
- Robotics and automated manufacturing equipment.
- Material handling and conveyor systems.
- Industrial power, control and signal connections.
