Why Choose the Ilme MZP15L225 Surface Mounting Housing?

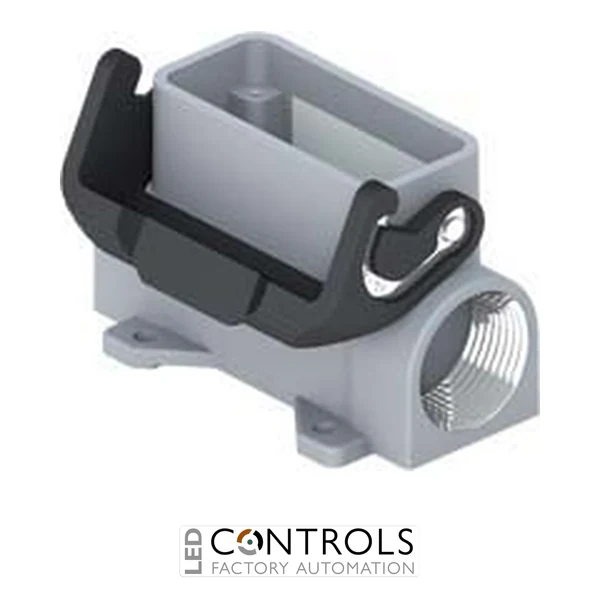

The Ilme MZP15L225 is a robust surface mounting connector housing designed for reliable industrial multipole connector installations. Featuring a single IL-BRID locking lever, size 49.16 construction and two M25 metric cable entries, it provides a secure and practical enclosure solution for industrial machinery, automation equipment and electrical installations.
Manufactured from aluminium, the MZP15L225 is engineered for the demanding conditions encountered in industrial connectivity applications. The IL-BRID lever provides positive mechanical locking when the housing is correctly coupled with a compatible connector hood or cover, helping maintain a secure connection while allowing convenient access during installation and maintenance.
The housing incorporates two side-entry M25 threaded cable openings, providing flexible cable routing for fixed installations. When correctly assembled, coupled and fitted with suitable cable glands and compatible ILME components, the MZP15L225 provides protection ratings of IP65, IP66 and IP69, making it suitable for demanding industrial environments.
Key Advantages
- Heavy-duty surface mounting housing for industrial multipole connectors.
- Single IL-BRID lever provides secure and convenient connector locking.
- Two M25 metric cable entries provide flexible cable routing.
- Standard 49.16 connector housing size for compatible ILME inserts and mating components.
- Durable aluminium construction suited to industrial installations.
- IP65 / IP66 / IP69 protection when correctly assembled with compatible components and suitable cable glands.
Key Features
- ILME industrial connector housing.
- Surface mounting configuration for fixed installations.
- Size 49.16 housing format.
- Equipped with 1 IL-BRID locking lever.
- 2 × M25 side cable entries.
- Robust aluminium housing.
- Designed for compatible ILME heavy-duty multipole connector inserts.
- Protection up to IP69 with the connector correctly coupled and installed.
Reliable Housing for Industrial Connector Systems
Heavy-duty connector housings protect electrical connector inserts and provide the mechanical interface required for secure industrial connections. The Ilme MZP15L225 is intended for fixed surface mounting and combines a rugged aluminium body with the IL-BRID lever system to provide dependable locking between compatible connector components.
Its twin M25 side entries simplify cable routing into machinery, control equipment and industrial electrical assemblies. When the complete connector is properly coupled and locked and suitable cable glands are installed, the housing provides a high level of environmental protection suitable for demanding automation and manufacturing applications.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Control panels and electrical enclosures.
- Motor and equipment connection systems.
- Material handling and conveyor installations.
- Industrial multipole connector assemblies.
