Why Choose the ILME MZP15LS225 IL-BRID Surface Mounting Housing?

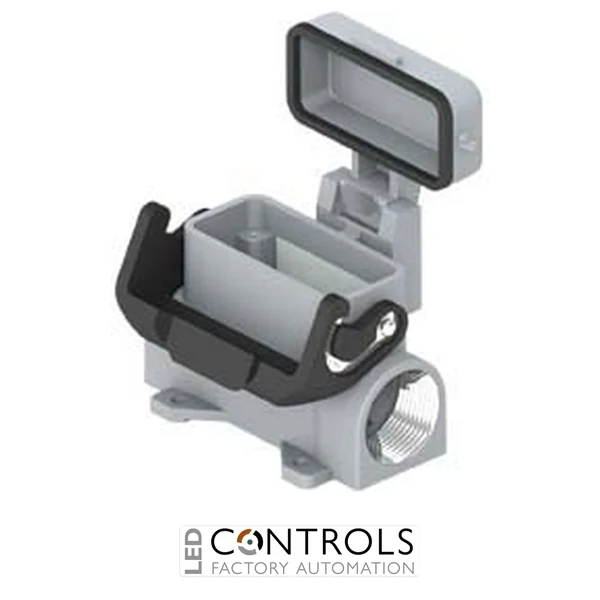

The ILME MZP15LS225 is a robust surface mounting industrial connector housing with metal cover designed for reliable multipole electrical connections in machinery, automation and industrial control systems. Part of the ILME IL-BRID series, this size 49.16 aluminium housing features one IL-BRID locking lever, two M25 cable entries and an integrated metal protective cover.
The IL-BRID locking system uses a polyamide lever with a stainless steel core, providing secure mechanical engagement with compatible mating connector components while supporting convenient connection and disconnection during servicing. The supplied metal cover protects the connector interface when disconnected, helping safeguard the internal insert in demanding industrial environments.
With 2 × M25 cable entries, a compact size 49.16 format and IP65 / IP66 / IP69 protection, the MZP15LS225 provides a versatile fixed connection point for industrial power, control and signal circuits. Its wide operating temperature range of -40 °C to +125 °C further supports use in demanding machinery and automation applications.
Key Advantages
- Robust aluminium surface mounting housing for industrial multipole connectors.
- Single IL-BRID locking lever provides secure connector engagement.
- Supplied with a metal protective cover for the connector interface.
- 2 × M25 cable entries provide flexible cable routing into the enclosure.
- IP65 / IP66 / IP69 protection for demanding industrial environments.
- Wide -40 °C to +125 °C operating temperature range.
Key Features
- ILME IL-BRID series.
- Size 49.16 surface mounting housing.
- One IL-BRID locking lever.
- Metal protective cover.
- 2 × M25 cable entries.
- Aluminium housing construction.
- Lever manufactured from polyamide and stainless steel core.
- Rubber gasket for environmental sealing.
- IP65 / IP66 / IP69 degree of protection.
- RAL 7040 grey finish.
- RoHS compliant construction.
Reliable Protection for Industrial Connections
Industrial connector housings provide mechanical and environmental protection for electrical inserts while creating a secure interface between fixed equipment and detachable cable assemblies. The ILME MZP15LS225 combines an aluminium enclosure, IL-BRID locking mechanism and metal protective cover to provide a dependable connection solution for compatible size 49.16 multipole inserts.
The two M25 cable entries support flexible cable routing, while the metal cover protects the connector interface when the mating hood is removed. Combined with its IP65 / IP66 / IP69 protection and wide operating temperature range, the MZP15LS225 is well suited to machinery and automation systems where dependable connectivity, environmental protection and straightforward maintenance are required.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Electrical control cabinets and enclosures.
- Robotics and automated manufacturing equipment.
- Material handling and conveyor systems.
- Industrial power, control and signal connections.
