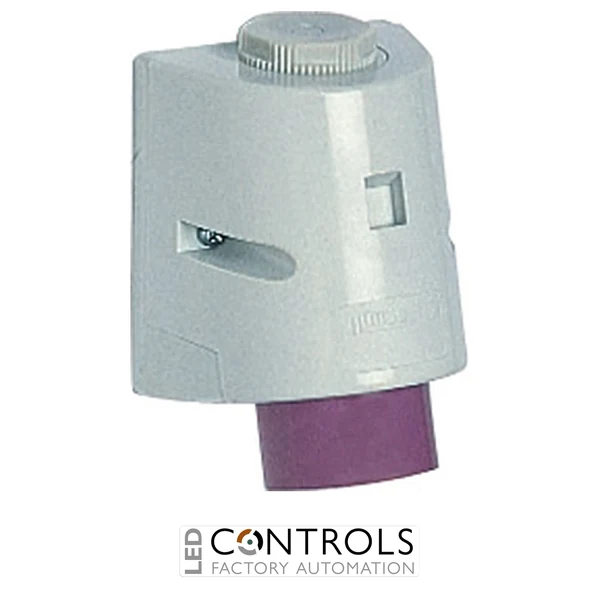

Why Choose the ILME PB16002SM 16 A 24 V 2-Pole Wall-Mounted Appliance Inlet?
The ILME PB16002SM is a robust 16 A wall-mounted industrial appliance inlet designed for extra-low-voltage electrical connections in machinery, automation and industrial installations. Part of the ILME PLUSO PB series, this 2-pole wall-mounted plug is rated for 20–25 V AC at 50/60 Hz and provides IP44 protection.
Designed in accordance with EN 60309-1 and EN 60309-2, the PB16002SM provides a standardised connection for compatible extra-low-voltage industrial equipment. Its enclosure and insert are manufactured from self-extinguishing insulating thermoplastic, while the voltage configuration uses lilac identification for straightforward recognition in industrial installations.
The wall-mounted construction features a top cable entry with Pg21 threaded grommet, which can be replaced with a suitable cable gland where required. With its 16 A current rating, 20–25 V AC voltage range, two-pole configuration and splash-resistant IP44 enclosure, the PB16002SM provides a practical fixed connection point for compatible low-voltage industrial equipment.
Key Advantages
- 16 A wall-mounted industrial appliance inlet for extra-low-voltage connections.
- 20–25 V AC rating, suitable for compatible nominal 24 V AC applications.
- 2-pole configuration for compatible low-voltage industrial circuits.
- IP44 protection for splash-resistant industrial installations.
- Self-extinguishing insulating thermoplastic construction.
- Designed in accordance with EN 60309-1 and EN 60309-2.
Key Features
- ILME PLUSO PB series.
- Wall-mounted industrial plug / appliance inlet.
- 16 A rated current.
- 20–25 V AC rated voltage.
- 2 poles.
- 50/60 Hz frequency.
- IP44 degree of protection.
- No key way configuration.
- Pg21 top cable entry with threaded grommet.
- Screw-terminal connection technology.
- Lilac voltage identification for 20–25 V AC applications.
Reliable Extra-Low-Voltage Industrial Connectivity
Industrial plugs and appliance inlets based on EN 60309 provide standardised electrical connections for machinery, automation equipment and fixed industrial installations. The ILME PB16002SM is specifically configured for extra-low-voltage applications, providing a clearly identifiable two-pole connection for 20–25 V AC supplies at up to 16 A.
The wall-mounted design provides a fixed connection point on machinery, equipment or suitable electrical installations, while the top cable entry supports practical wiring. Its IP44 enclosure provides protection against solid objects larger than 1 mm and splashing water when correctly installed, making the PB16002SM suitable for a wide range of indoor and protected industrial applications.
Typical Applications
- 24 V industrial machinery and equipment.
- Factory automation and production systems.
- Extra-low-voltage control and auxiliary circuits.
- Fixed industrial equipment connections.
- Workshop and maintenance installations.
- Industrial 16 A plug and socket systems.
